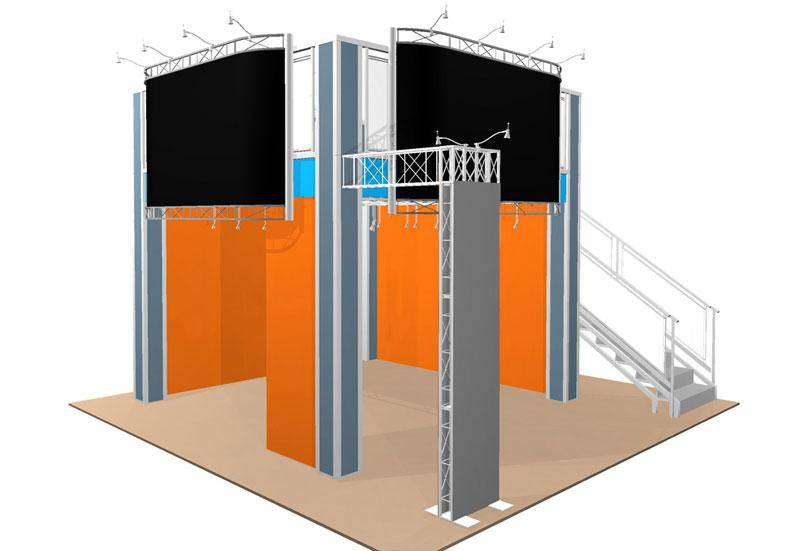

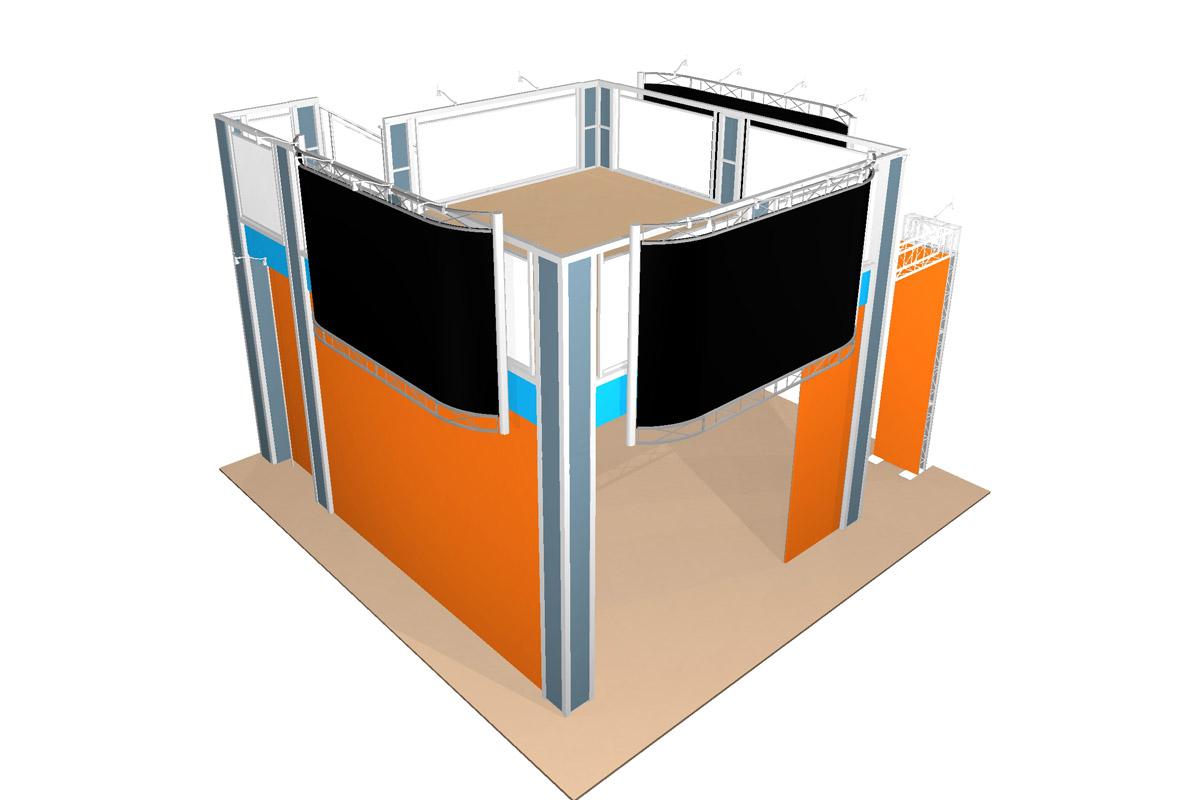

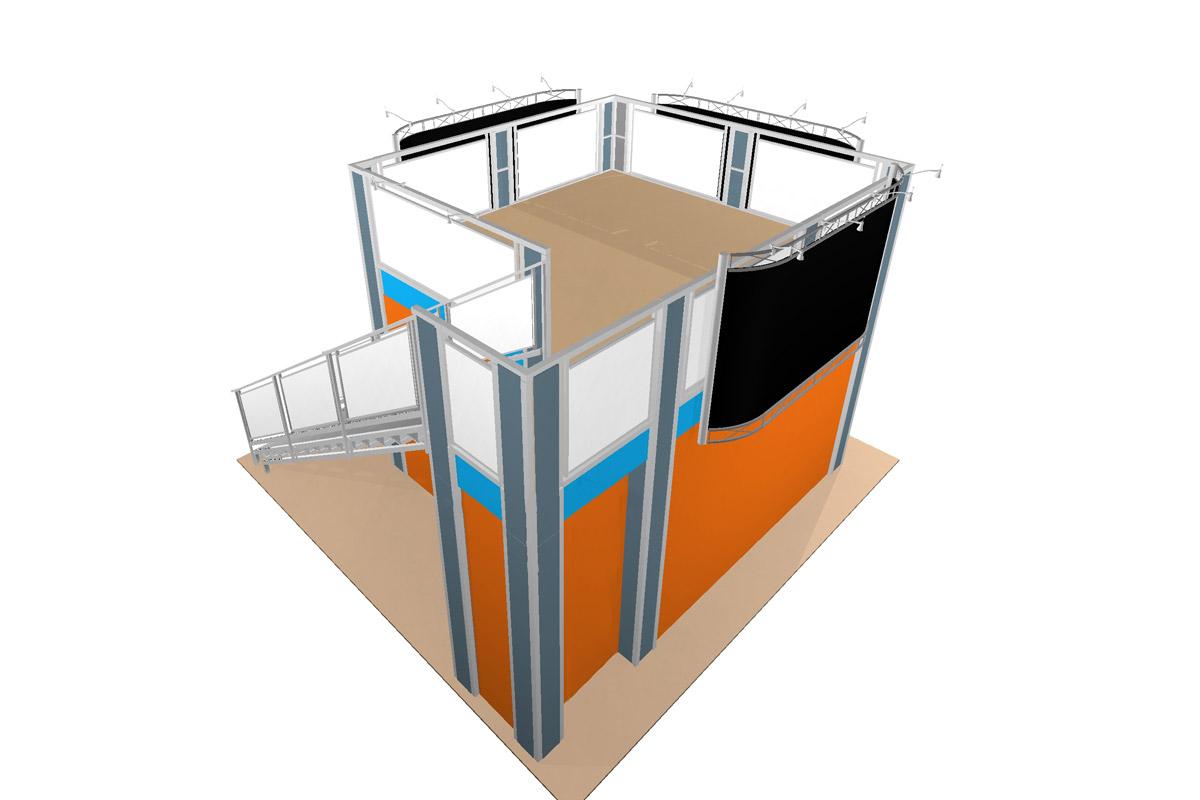

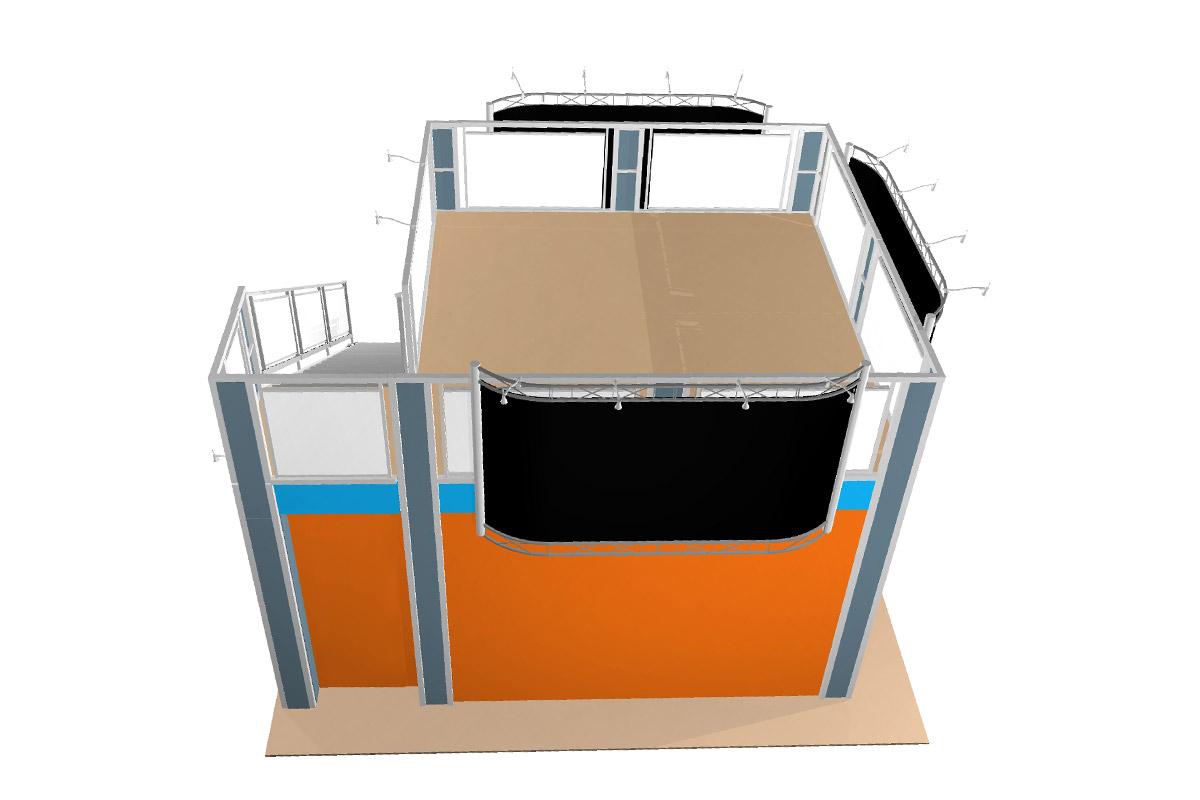

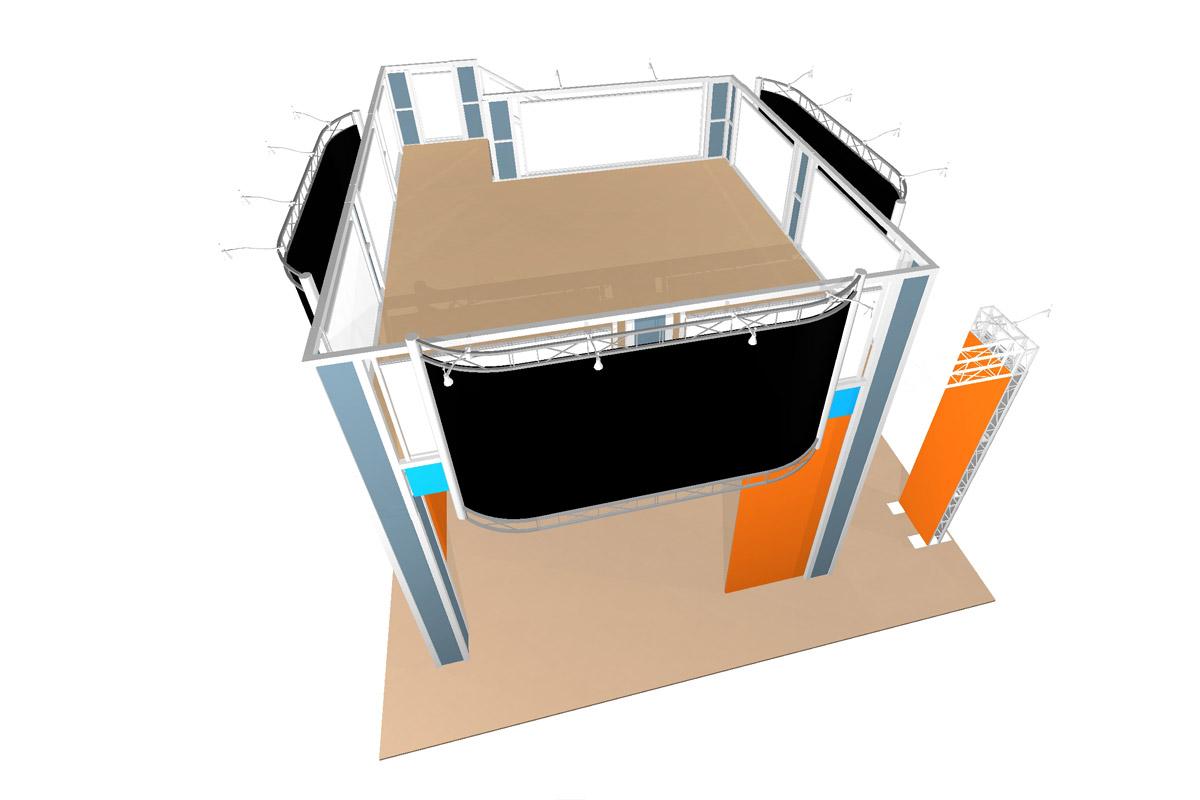

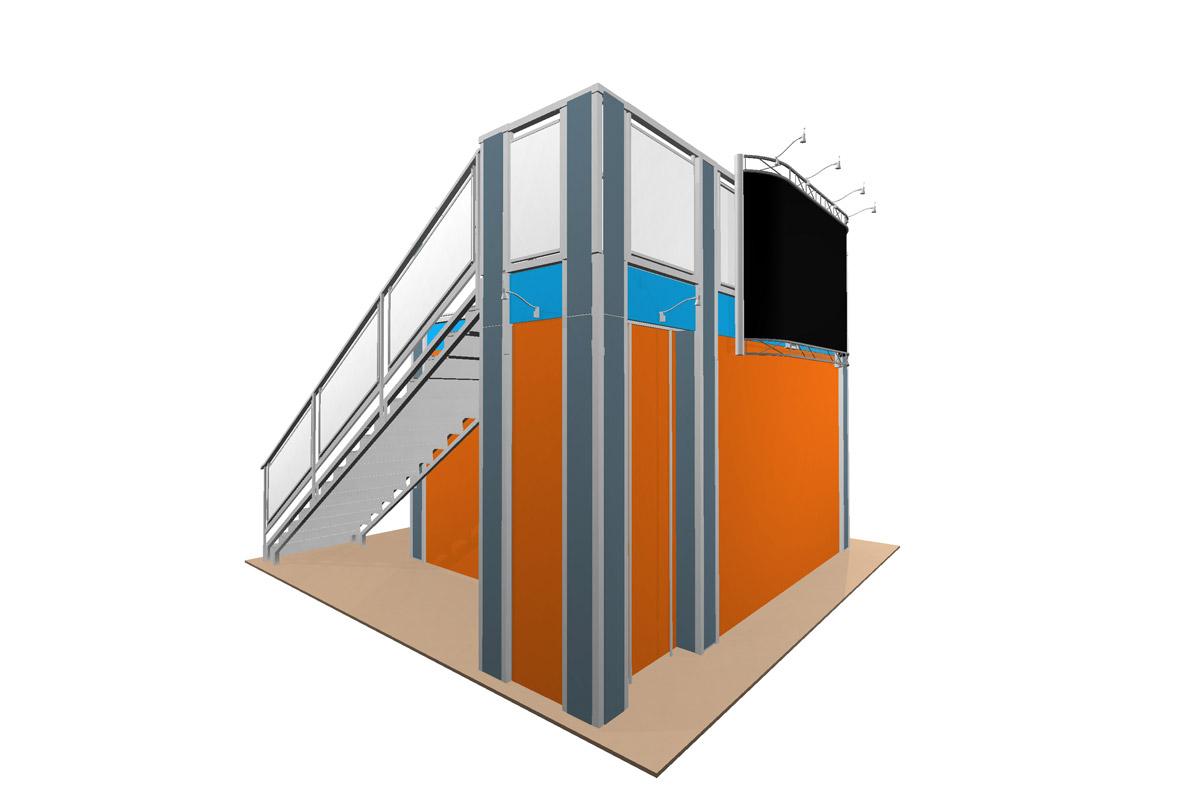

TW 20 x 20
INCLUDED COMPONENTS
Structural Truss System
Stairs
Wall Frames & Doors
Rails
Deck Boards
Lights
Ceilings
1/4” Frosted Plex Rail Infills
Hyperlite Signs
Unprinted Sintra Infills
Wall Panels
3 Crates
DIMENSIONS & WEIGHT
- Top Deck Footprint: 13’5″ x 13’5″
- Footprint with stairs/landing: 17’7″ x 17’10”
- Top Deck Weight Limit: 125 lbs. / sq. ft.
- Top Deck Max Occupancy: 9 people
- Overall Height: 13’1″
- Ceiling Height: 8’7″
- 20 x 20 Space
- Approx. 5,000 lbs.
OPTIONAL ADDONS
- Custom color (printed) column infills
– $3,380 - Custom color (printed) large wall panel
– $4,520 - 2 EZ6 rectangle designer counters w/ shelf and graphics
– $1,145 / each - 3 lit shelves
– $35 / each - 2 curve back pack stools
– $169 / each - 1 EZ612 coffee table
– $1,208 / each - 1 5’ EZ612 side table w/ shelf
– $1,310 / each - 2 large LCD mounts
– $350 / each - 1 EZ6 shelving unit with 4 shelves
– $1,562 / each - 1 EZ6 oval designer counter w/ graphic
– $1,658 / each - 1 EZ612 front kiosk with graphics
– $1,896 - 1 34.5” slatwall panel with graphic
– $1,210
SHIPPING SPECS
- Ships in 3 crates
- Approx. 4′ x 8′ x 4′ / ea.
DOCUMENTS
Color Options

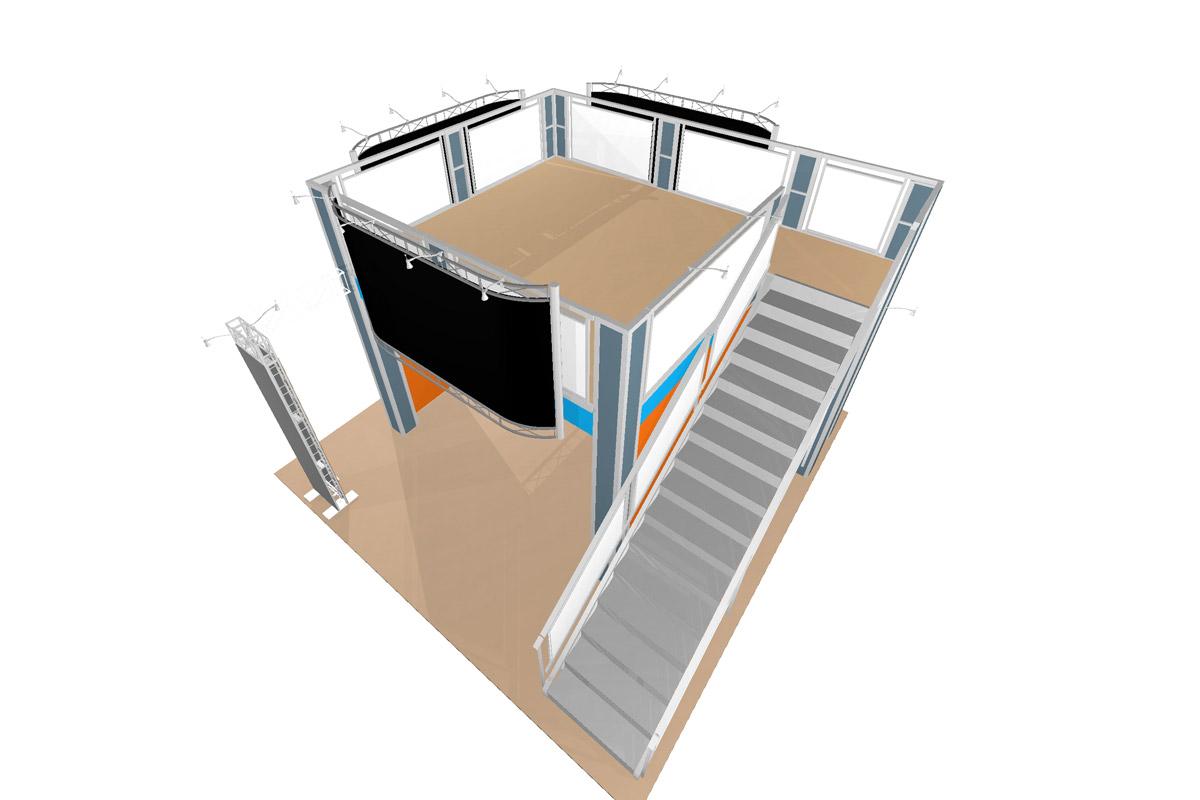

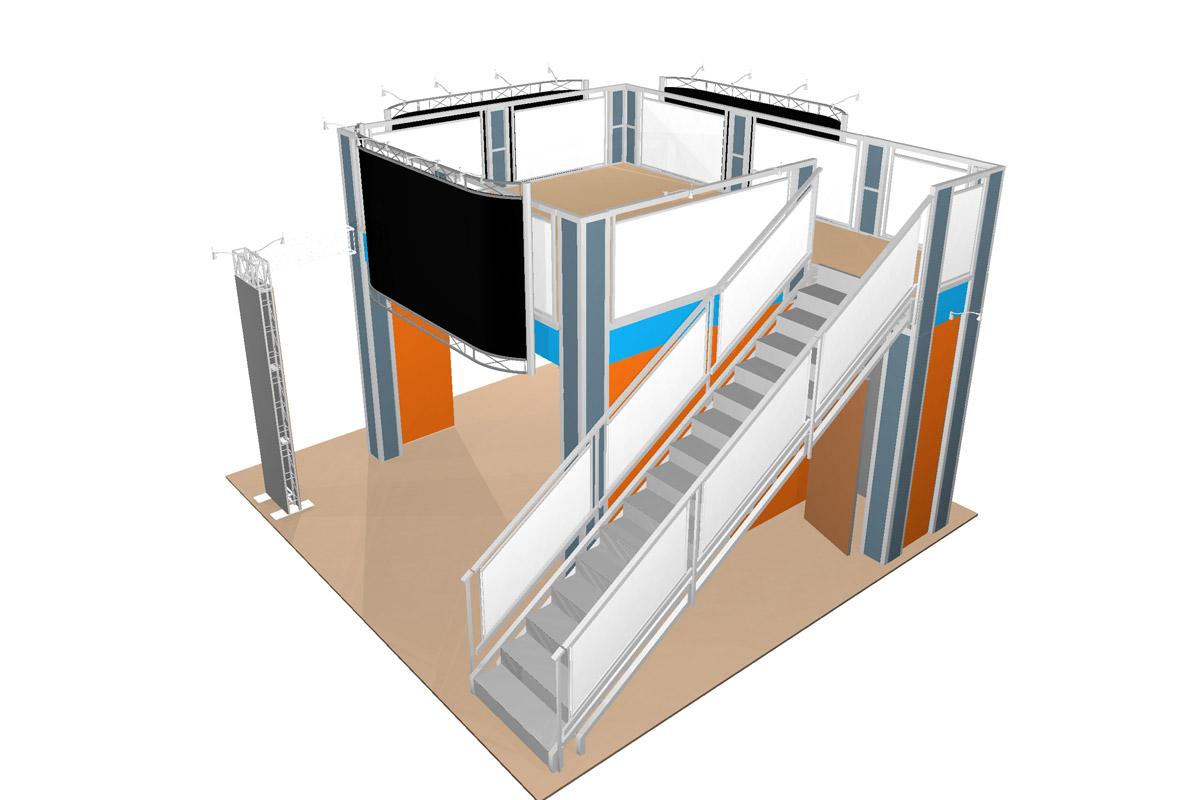

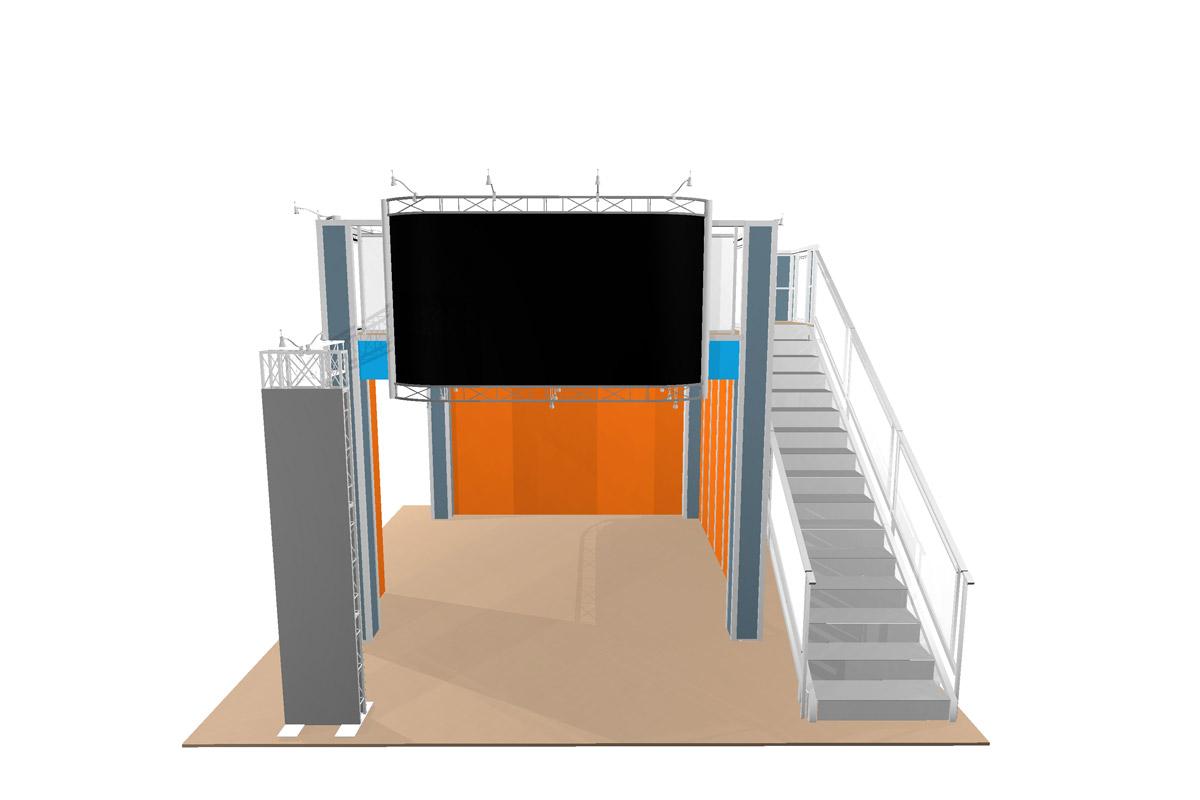

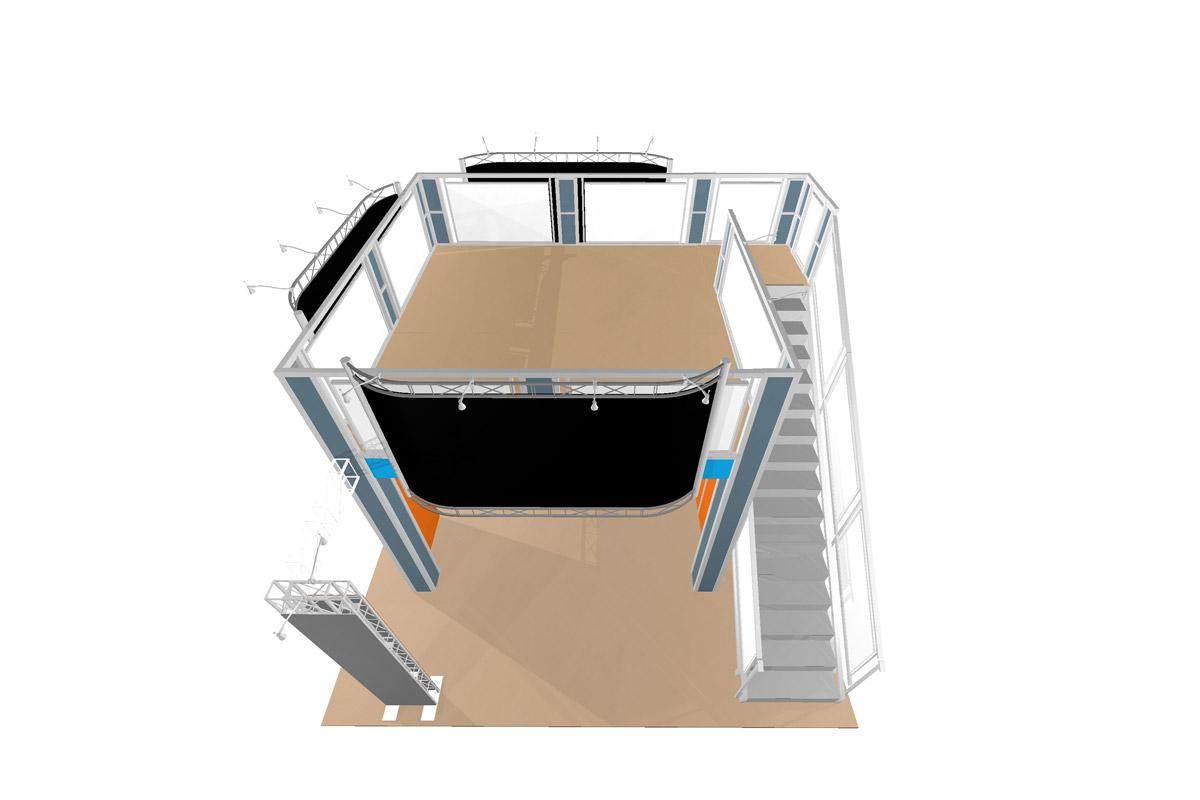

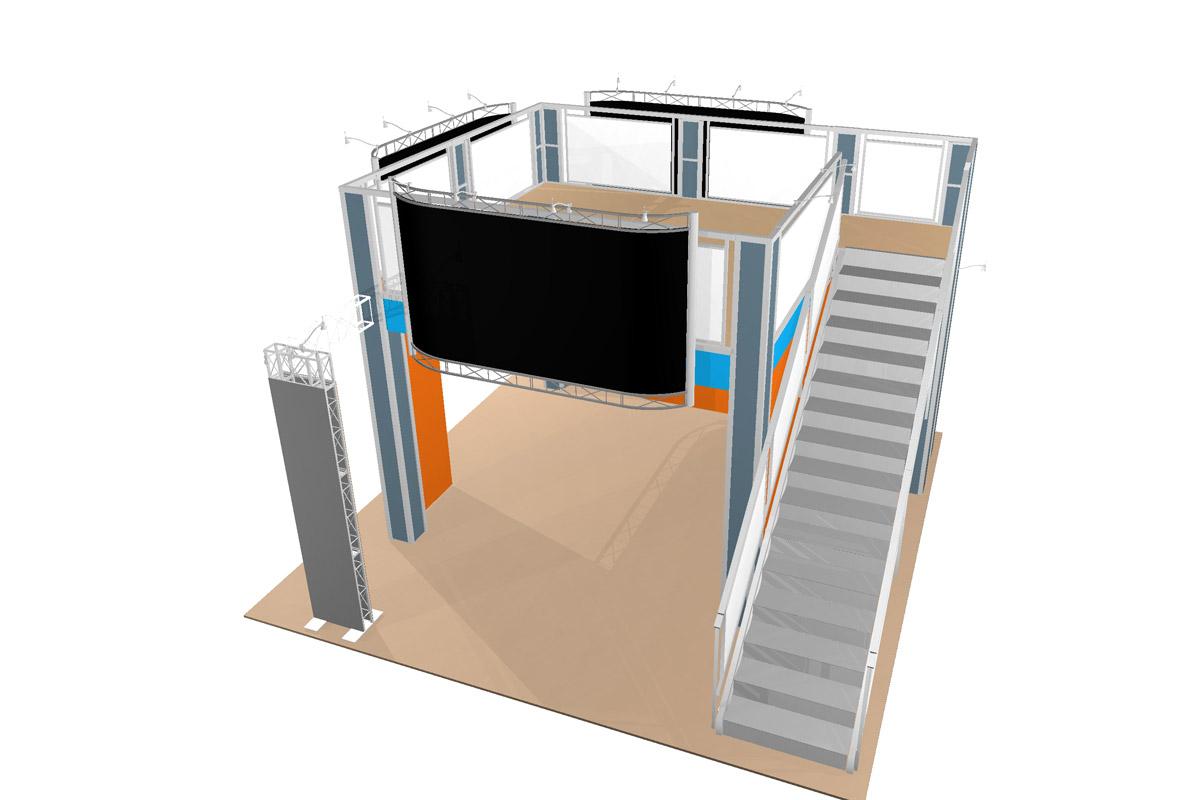

The TW design combines the 13 x 13 deck with a straight staircase and landing for a private meeting area without eating floor space. An in-facing slatwall panel with a graphic facing out and a double sided kiosk at the front of the booth space bring wall space to the open aisles creating a comfortable discussion area below the deck. There is a storage closet under the stair landing.
• All lights shown are included in the full kit
• LCD mounts fit monitors up to 42″

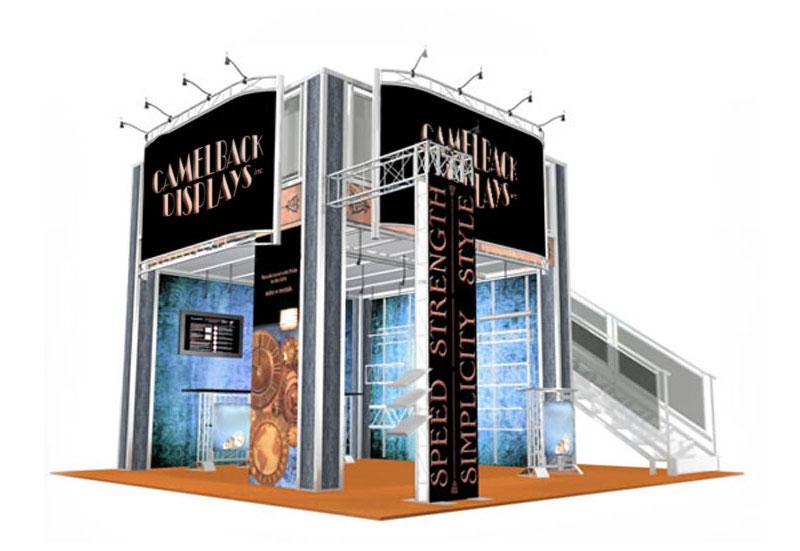

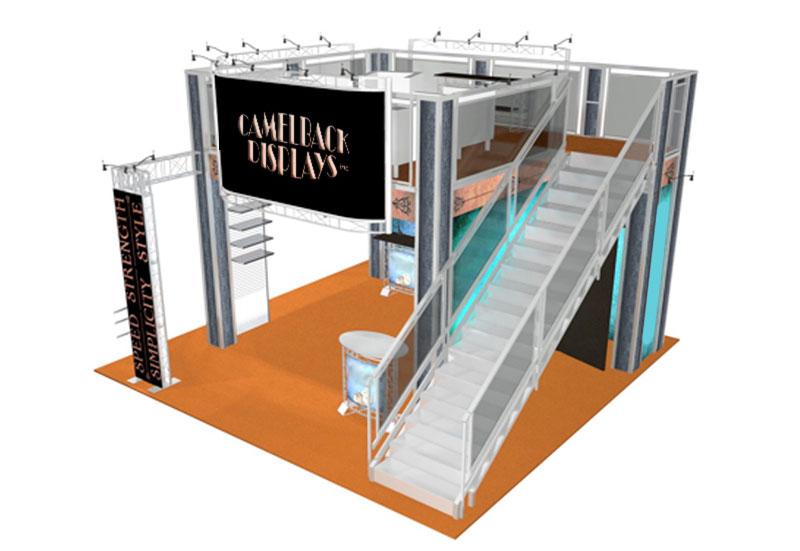

TW 20’ x 20’ – ADVANCED KIT
Call Us for a Quote Today!
INCLUDED COMPONENTS
Structural Truss System
Stairs
Wall Frames & Doors
Rails
Deck Boards
Ceilings w/ Lights
1/4” Frosted Plex Rail Infills
Hyperlite Signs w/ Fabric Graphics
Printed Sintra Infills & Wall Panels
2 column mount workstations
Custom color (printed) large wall panel
2 EZ6 rectangle designer counters w/ shelf and graphics
3 lit shelves
2 curve back pack stools
1 EZ6-12 coffee table
(1) 5’ EZ6-12 side table w/ shelf
2 large LCD mounts - $350 / each
1 EZ6 shelving unit with 4 shelves
1 EZ6 oval designer counter w/ graphic
1 EZ6-12 front kiosk with graphics
(1) 34.5” slatwall panel with graphic
5 Crates
DIMENSIONS & WEIGHT
- Top Deck Footprint: 13’5″ x 13’5″
- Footprint with stairs/landing: 17’7″ x 17’10”
- Top Deck Wight Limit: 125 lbs. / sq. ft.
- Top Deck Max Occupancy: 9 people
- Overall Height: 13’1″
- Ceiling Height: 8’7″
- 20 x 20 Space
- Approx. 6,000 lbs.
OPTIONAL ADDONS
- EZ6 rectangle designer counters
– $1,145 / ea. - 4-shelf lit racks
– $280 / ea. - Column mount swivel LCD mounts
– $175 / ea. - Column mount workstation
– $380 / ea. - Column mount fixed LCD mounts
– $150 / ea. - 6’ straight Hyperlite sign
– $1,474 / ea. - Laptop shelves
– $220 / ea. - Individual cases are available
– call for quote
SHIPPING SPECS
- Ships in 5 crates
- Approx. 4′ x 8′ x 4′ / ea.
DOCUMENTS
Floorplan
The Golf Great design combines the 9 x 9 deck with a straight staircase and landing for a private meeting area without eating floor space. A large Hyperlite mural covers one side of the booth while matching standard Hyperlite signs create branding on the other 2 sides. This is still a very open booth with plenty of space for a reception counter, a shelving unit and a demo area. There is a storage closet under the stair landing.
• All lights shown are included in the full kit
• LCD mounts fit monitors up to 42″
