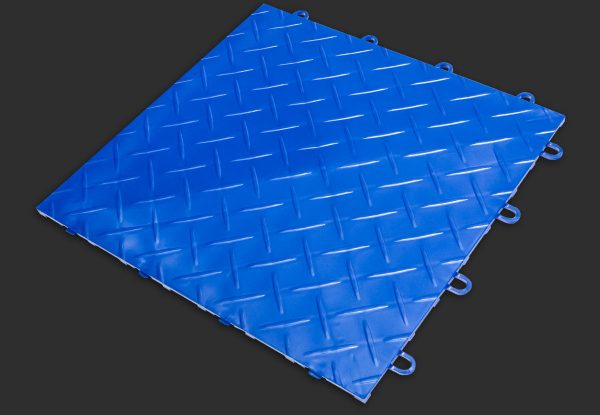

RaceDeck Diamond Tile Flooring

RaceDeck Diamond Tile Flooring

Flooring Kits Include:
9’x9′     Floor: 81 Tiles
10’x10′ Floor: 100 Tiles
9’x19′   Floor: 171 Tiles
10’x20′ Floor: 200 Tiles
20’x20′ Floor: 400 Tiles

Product Specs:
Tile Dimensions: 12″ x 12″ x 0.5″ (single tile)
Weight: 13 oz. (single tile)

Please Note: Optional edges will add 3″to each side of your layout.  For example, if a 10’x10′ floor is ordered with edge pieces, final dimensions will be 10’6″ x 10’6″
(Sold Separately)

SKU: 46-F3 Category: Tag:

MAKE SELECTION / ADD TO CART

Price calculated upon selection.

Clear
  • Flooring Kit Size*
    Clear Selection

    Click image to make selection

    • 2.1 $
    • 1.25 $

FEATURES

  • The Original Diamond Tread Garage Floor System
  • One of the most popular garage flooring styles worldwide
  • Great slip resistance with a high-tech look
  • Engineered to look seamless from module to module, allowing you to create virtually any size floor
  • Easy to clean surface, resistant to petroleum products and most chemicals
  • Available in TuffShield finish
  • Interlocks with all RaceDeck flooring products
  • Patent Pending
  • MADE IN THE USA!

PowerLock™ Technology

  • Engineered to handle heavy vehicle rolling loads
  • 16 patented PowerLocks per module become part of the Superstructure when engaged
  • Multi-patented Step-N-Snap design makes for no tools, no glues, and no toxic fumes




Diamond Superstructure

  • Functions as one complete sub-structure, making the system perfect for applications with temperature swings
  • Easily supports tool chests, 4 post lifts, and other garage rolling equipment
  • Fully channeled to allow air and moisture to escape, eliminating odor causing mold and mildew
  • Supports vehicle rolling loads of over 80,000 pounds


Edging (Sold Separately)

  • Give your RaceDeck Garage Floor a finished look with this 12” x 3” beveled edge piece, which shares the same interlocking system as the tiles and simply snaps into place.

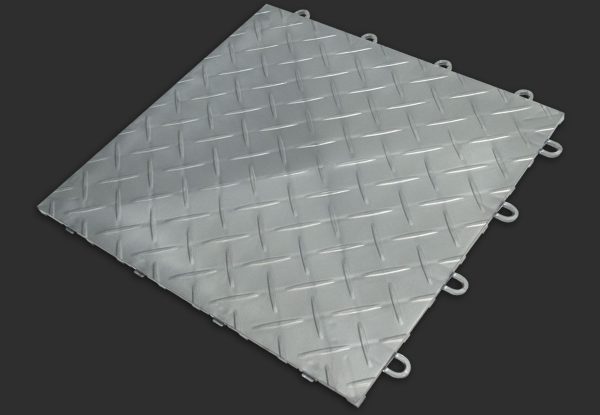

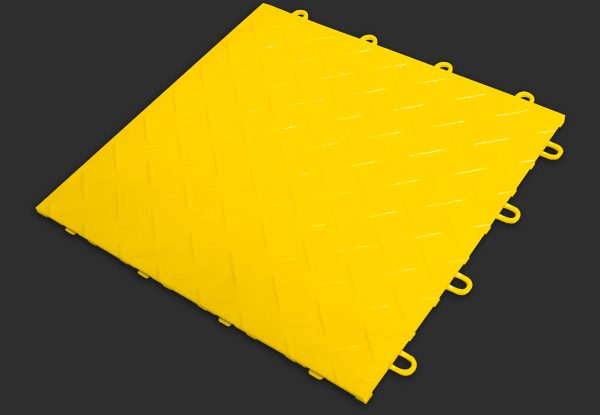

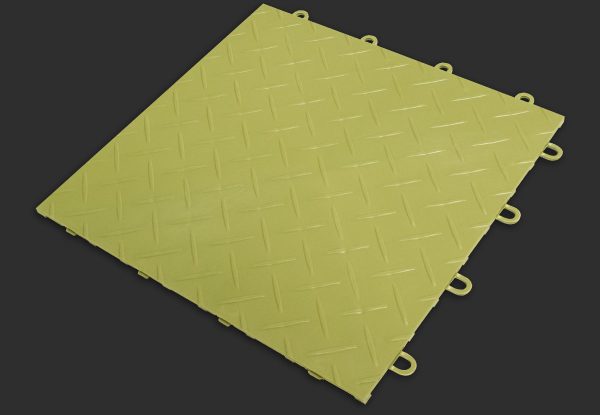

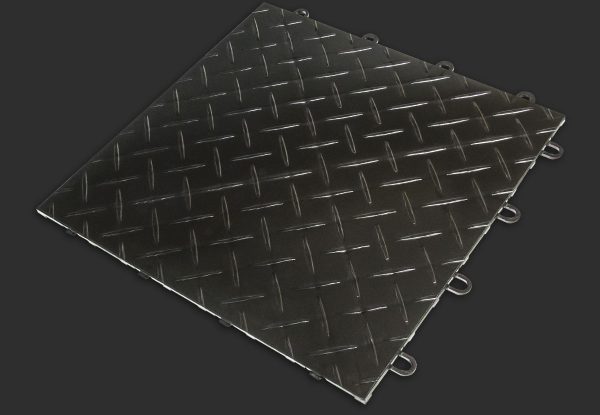

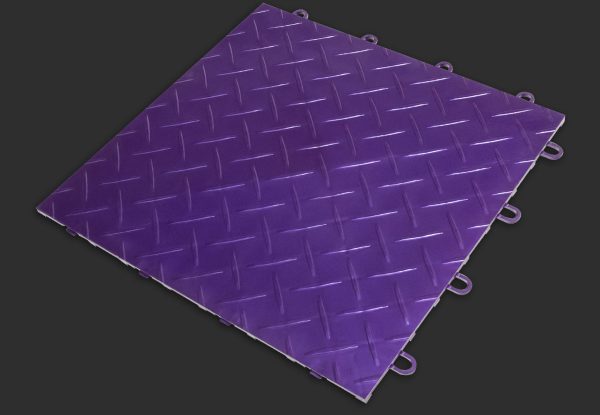

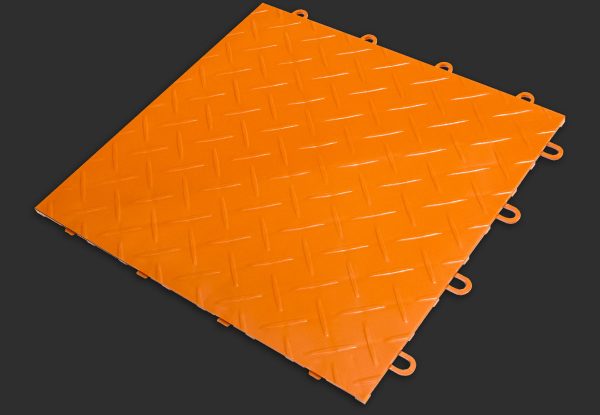

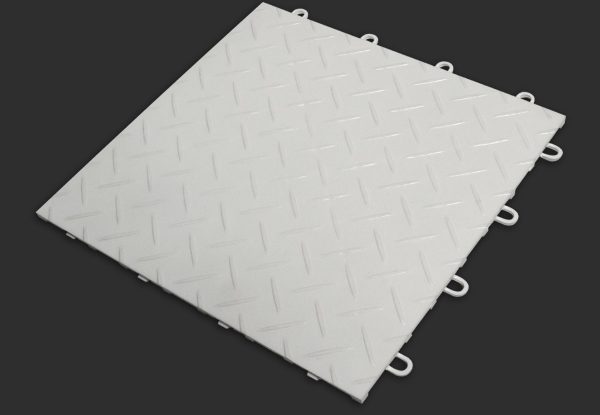

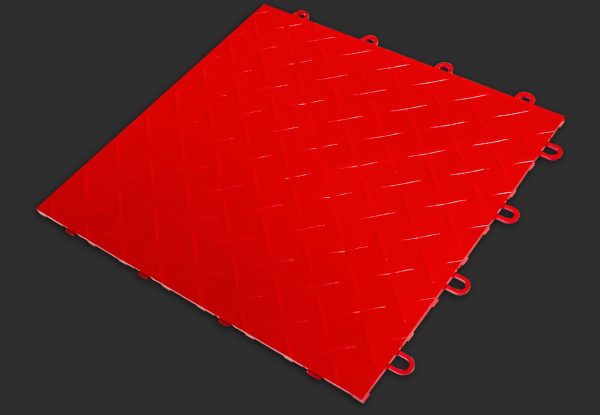

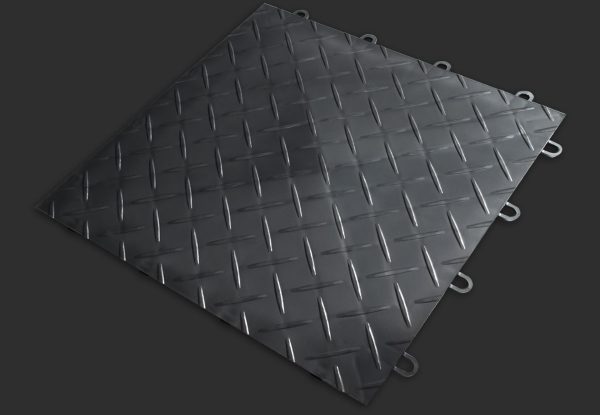

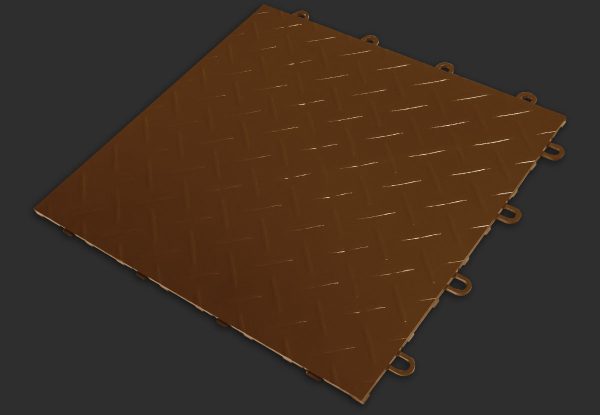

    Available in 8 colors.

Actual Colors May Vary

Set up Instructions

Step 1

Start by laying your first panel on any corner. The loops should be pointed in the direction you want to add panels.

Step 2

The panels have 2 sides with female loops, and 2 sides with male pegs.


There are two parts to the SnapLock locking system: Loop & Peg
The image shown above is for demonstration purposes
(Bottom of tile shown)

Step 3

Place the next panel so that the pegs line up over the loops.


Step 4

Gently step on each panel. You will hear and feel it snap into place. Repeat these steps until your flooring is complete. That’s all there is to it!




Tips

Always begin the installation in one corner, pointing the female loops in the directions that additional tiles are to be added. See animation below.

Correct

All tiles on any given installation should ALWAYS HAVE THE FEMALE LOOPS GOING IN THE SAME DIRECTION.



Incorrect

CAUTION: If you inadvertently rotate a tile 90° it will snap into place but you will not be able to complete the installation properly.


Edge / Corner Pieces

When finished connecting tiles, it is time to add the corners & edges to the sides.  Use male or female depending on if the particular side is loop or peg.




Additional information

Flooring Kit Size

9' x 9', 10' x 10', 9' x 19', 10' x 20', 20' x 20'
