Pipe & Drape Hardware

For Layout Samples CLICK HERE

Prices shown are for aluminum finish, 1 ½” & 2″ tubing, but a black powder coat finish is also available for an upcharge.

UPRIGHTS

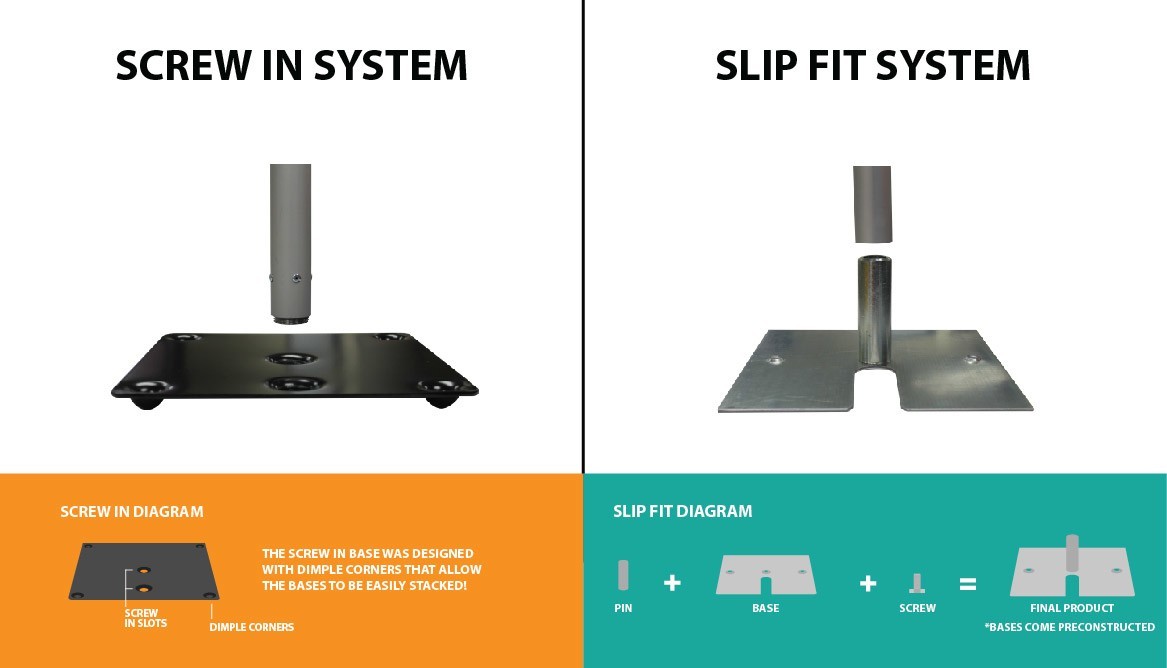

Uprights are the vertical portion of the pipe and drape framework. Some of the most commonly sold uprights are 8’ and 3’ fixed height 1.5” diameter aluminum tubes with slots at 8’ (8’ only) and 3’ (both 8’ and 3’ uprights) for drape support slots. Uprights come in both Slip Fit and Screw In. The only difference is the addition of a threaded pipe riveted to the inside of the bottom of the Screw In upright.

Uprights do not include base plates shown

FIXED UPRIGHTS

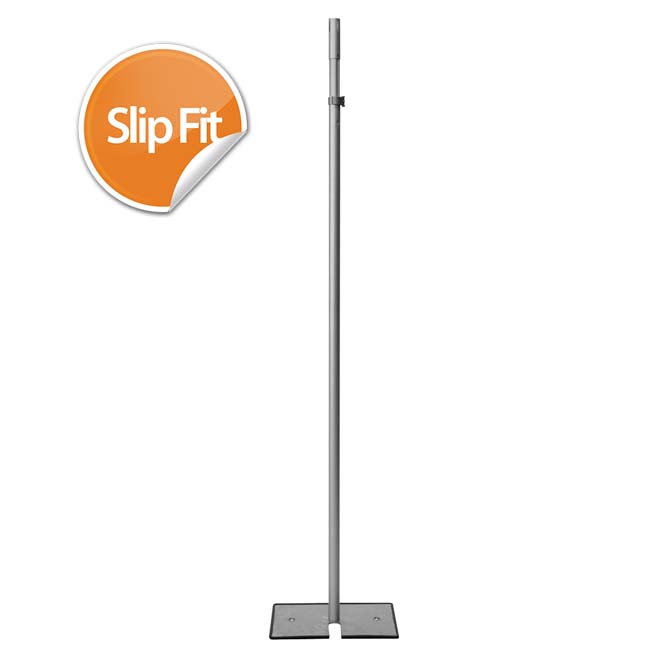

SLIP-FIT UPRIGHTS (ALUMINUM FINISH – 1.5″ TUBING)

Uprights do not include base plates shown

3′ UPRIGHT, SLIP-FIT

1 lbs

6′ UPRIGHT, SLIP-FIT

N/A

8′ UPRIGHT, SLIP-FIT

2.7 lbs

10′ UPRIGHT, SLIP-FIT

N/A

SCREW-IN UPRIGHTS (ALUMINUM FINISH – 1.5″ TUBING)

Uprights do not include base plates shown

3′ UPRIGHT, SCREW-IN

1.4 lbs

6′ UPRIGHT, SCREW-IN

N/A

8′ UPRIGHT, SCREW-IN

3.1 lbs

10′ UPRIGHT, SCREW-IN

N/A

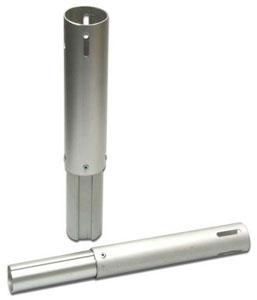

EXTENSIONS (ALUMINUM FINISH – 1.5″ TUBING)

2′ UPRIGHT EXTENSION
(TAKES AN 8′ UPRIGHT TO 10′)

1.5 lbs

4′ UPRIGHT EXTENSION
(TAKES AN 8′ UPRIGHT TO 12′)

1.8 lbs

6′ UPRIGHT EXTENSION

2.0 lbs

Special Height Cuts: $15 per Upright
Great for making custom height uprights. All dimensions are approximate.
Bases may add to overall height. Slots are additional.

Add 4 Additional Slots: $10 per Upright
1 Area: Front, Back, 2 Sides.
Perfect for adding a second drape support for use as a banner stand
or when custom heights are ordered (height cuts) .

EXTENSIONS (ALUMINUM FINISH – 2″ TUBING)

2′ UPRIGHT EXTENSION
(TAKES AN 8′ UPRIGHT TO 10′)

N/A

4′ UPRIGHT EXTENSION
(TAKES AN 8′ UPRIGHT TO 12′)

N/A

6′ UPRIGHT EXTENSION

N/A

Special Height Cuts: $15 per Upright
Great for making custom height uprights. All dimensions are approximate.
Bases may add to overall height. Slots are additional.

Add 4 Additional Slots: $10 per Upright
1 Area: Front, Back, 2 Sides.
Perfect for adding a second drape support for use as a banner stand
or when custom heights are ordered (height cuts) .

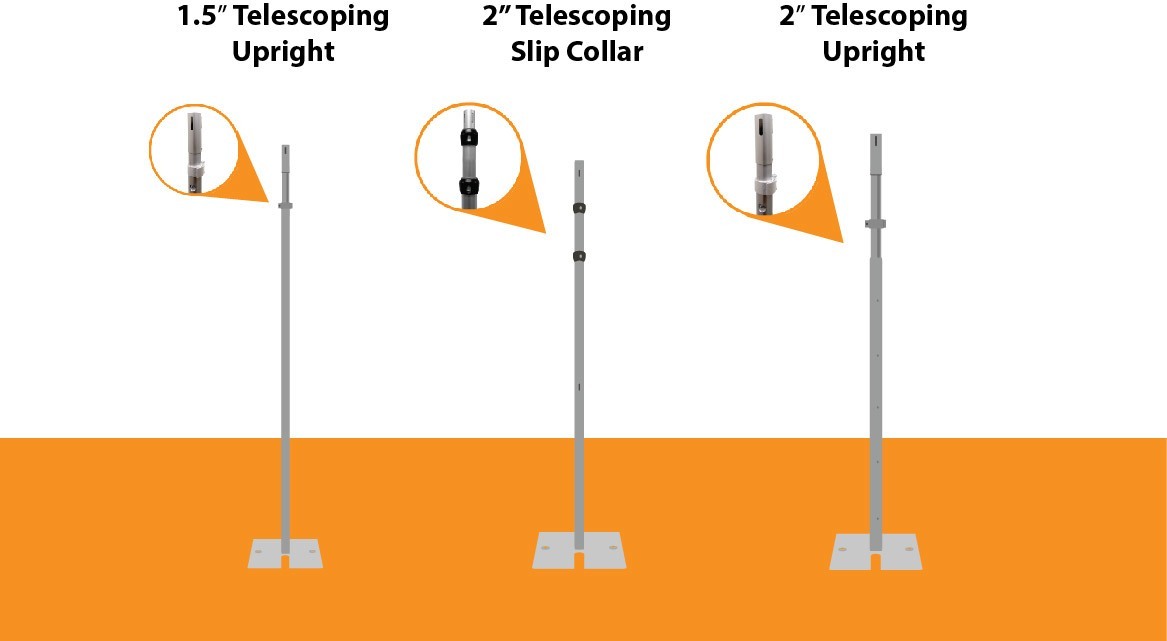

ADJUSTABLE UPRIGHTS

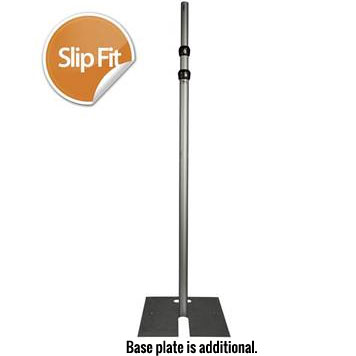

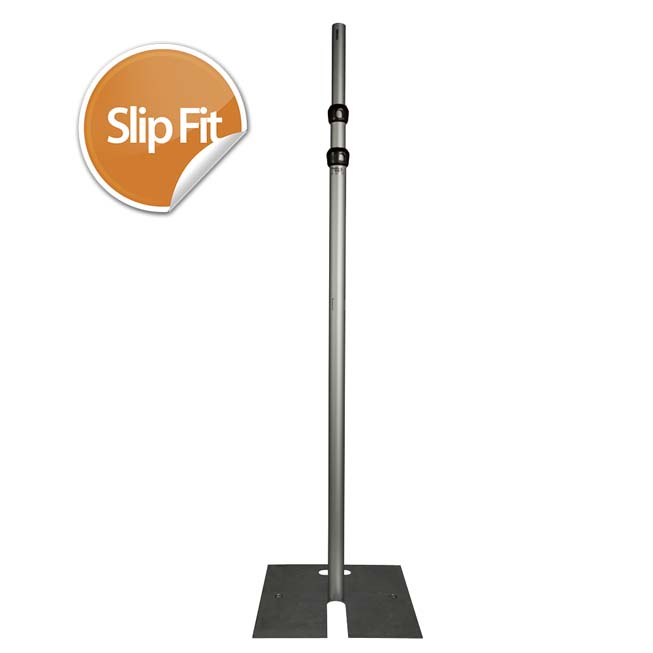

SLIP-FIT UPRIGHTS (ALUMINUM FINISH – 2″ TUBING)

Uprights do not include base plates shown

Slip Fit Uprights 2 inch tubin

9′-16′ UPRIGHT, SLIP-FIT

N/A

8′-14′ UPRIGHT, SLIP-FIT

N/A

7′-12′ UPRIGHT, SLIP-FIT

N/A

6′-10′ UPRIGHT, SLIP-FIT

N/A

12′-20′ UPRIGHT, SLIP-FIT

N/A

$105.00 Add to cart

10′-18′ UPRIGHT, SLIP-FIT

N/A

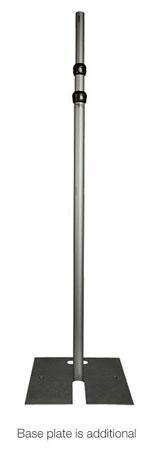

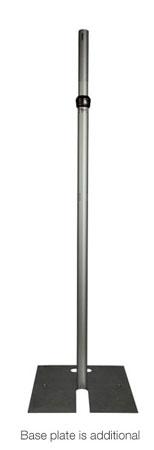

SLIP FIT TELE-UPRIGHTS WITH LOCKING CLAMP & BUTTON (LCB) (ALUMINUM FINISH) (1.5″ TUBING)

Uprights do not include base plates shown

Slip Fit Tele Upright

3′-5′ ADJUSTABLE UPRIGHT – SLIP-FIT / SCREW FIT

approx. 4 lbs

From: $62.00 Select options

6′-10′ ADJUSTABLE UPRIGHT – SLIP-FIT / SCREW FIT

approx. 5 lbs

From: $76.00 Select options

7′-12′ ADJUSTABLE UPRIGHT – SLIP-FIT / SCREW FIT

approx. 5 lbs

From: $84.00 Select options

8′-14′ ADJUSTABLE UPRIGHT – SLIP-FIT / SCREW FIT

approx. 5 lbs

From: $89.00 Select options

SLIP COLLAR UPRIGHTS – 2″ TUBING

Uprights do not include base plates shown

5′-11′ THREE PIECE ADJUSTABLE UPRIGHT

5.8 lbs

$109.00 Add to cart

6′-14′ THREE PIECE ADJUSTABLE UPRIGHT

6.8 lbs

$119.00 Add to cart

7′-17′ THREE PIECE ADJUSTABLE UPRIGHT

8 lbs

$129.00 Add to cart

8′-20′ THREE PIECE ADJUSTABLE UPRIGHT

10 lbs

$138.00 Add to cart

9′-23′ THREE PIECE ADJUSTABLE UPRIGHT

11 lbs

$141.00 Add to cart

3′-5′ TWO PIECE ADJUSTABLE UPRIGHT

2.5 lbs

4-7′ TWO PIECE ADJUSTABLE UPRIGHT

3.8 lbs

5′-8′ TWO PIECE ADJUSTABLE UPRIGHT

4.2 lbs

6′-10′ TWO PIECE ADJUSTABLE UPRIGHT

5.0 lbs

7′-12′ TWO PIECE ADJUSTABLE UPRIGHT

5.6 lbs

8′-14′ TWO PIECE ADJUSTABLE UPRIGHT

6.8 lbs

9′-16′ TWO PIECE ADJUSTABLE UPRIGHT

7.6 lbs

10′-18′ TWO PIECE ADJUSTABLE UPRIGHT

8.4 lbs

BASE PLATES

Bases are the foundation of all Pipe and Drape systems. Unlike cheaper alternatives that use hollow pins, our bases feature a machined solid steel pin for greater stability. Each pin edge is chamfered (or tapered) to make it easier to guide/install the upright over the pin. All of our 18 and 24-inch bases come standard with corner holes, and each features a carrying handle also as a standard feature.

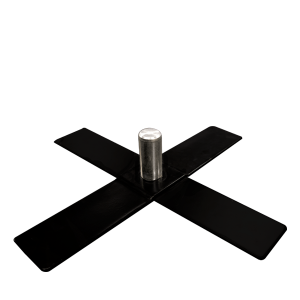

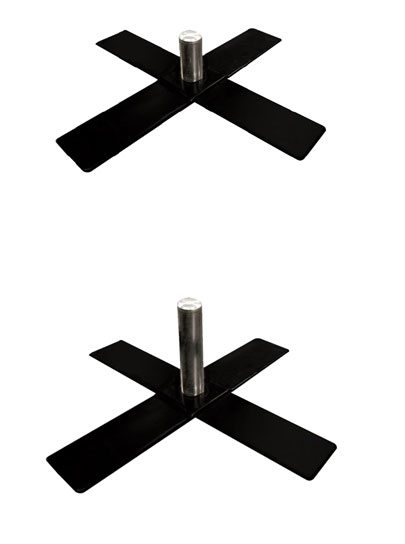

CROSS BASE WITH PIN

Cross Bases with Pin

1.5″ x 3″ CROSS BASE – 3″ PIN: FOR UPRIGHTS UP TO 3FT.

N/A

1.5″ x 6″ CROSS BASE – 6″ PIN: FOR UPRIGHTS UP TO 8FT.

N/A

2″ x 3″ CROSS BASE – 3″ PIN: FOR UPRIGHTS UP TO 3FT.

N/A

2″ x 6″ CROSS BASE – 6″ PIN: FOR UPRIGHTS UP TO 8FT.

N/A

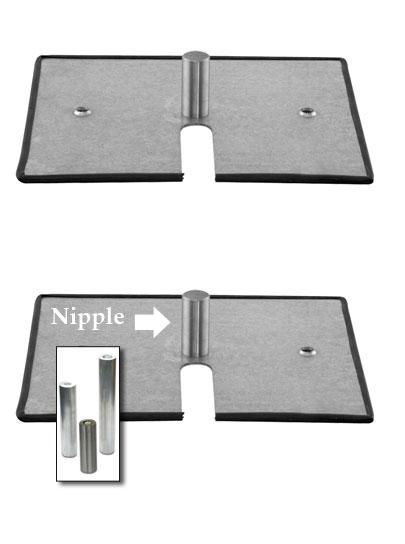

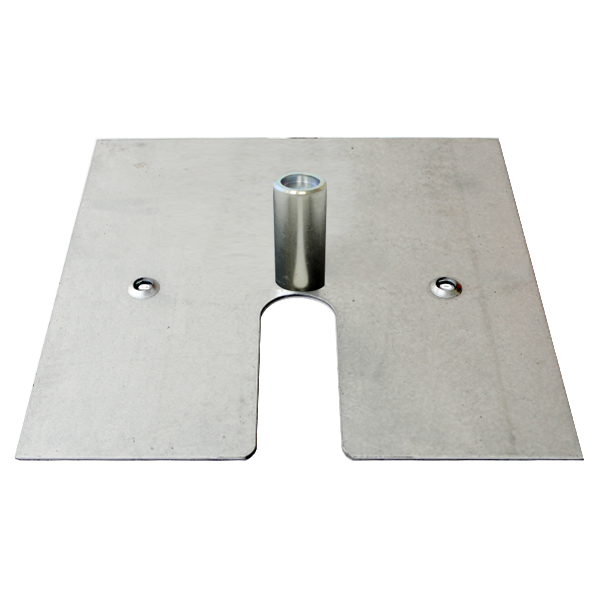

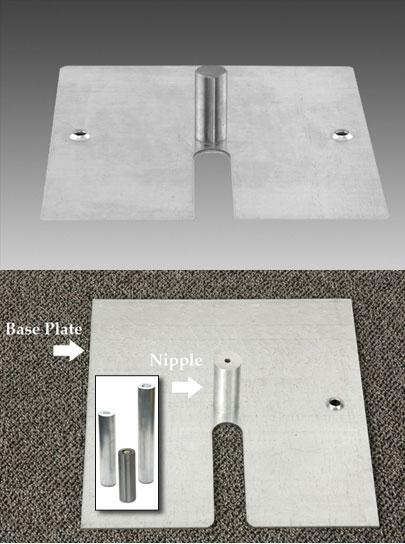

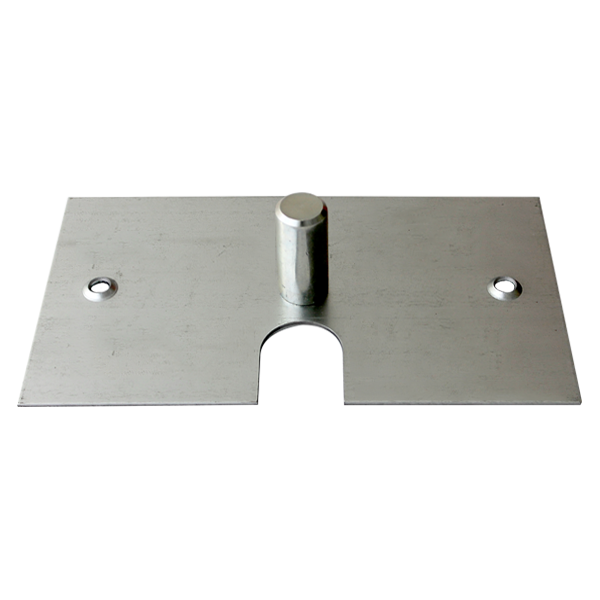

SLIP-FIT (ALUMINUM FINISH – 1.5″ TUBING)

8″ x 14″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 3FT.

6.5 lbs

15″ x 15″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 8FT.

11.2 lbs

24″ x 24″ SLIP FIT BASE – 6″ NIPPLE: FOR UPRIGHTS UP TO 14FT.

29 lbs

16″ x 14″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 8FT.

10 lbs

18″ x 18″ SLIP FIT BASE – 6″ NIPPLE: FOR UPRIGHTS UP TO 12FT.

35 lbs

SLIP-FIT (ALUMINUM FINISH – 2″ TUBING)

8″ x 14″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 3FT.

With Edge protector installed

6 lbs

15″ x 15″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 10FT.

With Edge protector installed

11.2 lbs

24″ x 24″ SLIP FIT BASE – 6″ NIPPLE: FOR UPRIGHTS UP TO 14FT.

With Edge protector installed

17 lbs

16″ x 14″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 8FT.

With Edge protector installed

10 lbs

18″ x 18″ SLIP FIT BASE – 6″ NIPPLE: FOR UPRIGHTS UP TO 12FT.

With Edge protector installed

17 lbs

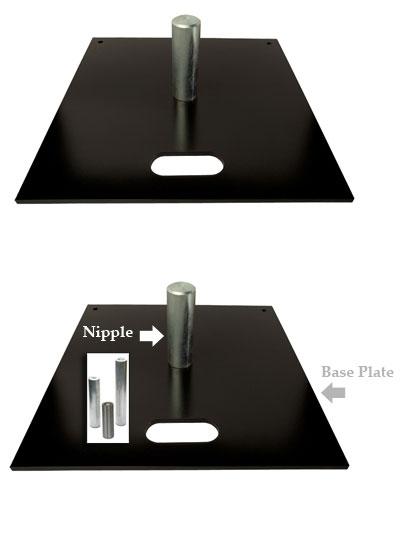

SCREW IN (BLACK POWDER COATED – 1.5″ TUBING)

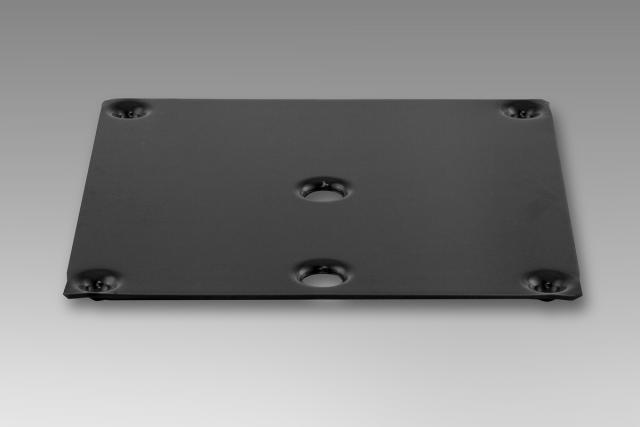

11″x11″ BASE FOR 3′ UPRIGHTS

6 lbs

15″x15″ BASE FOR 8′ UPRIGHTS

10 lbs

18″x18″ BASE FOR 10′ UPRIGHTS

17 lbs

24″x24″ BASE FOR 12′ + UPRIGHTS

29 lbs

SLIP-FIT (BLACK POWDER COATED – 2″ TUBING)

8″ x 14″ BASE

6 lbs

16″ x 14″ BASE

10 lbs

14″ x 16″ BASE

17 lbs

15″ x 15″ BASE

29 lbs

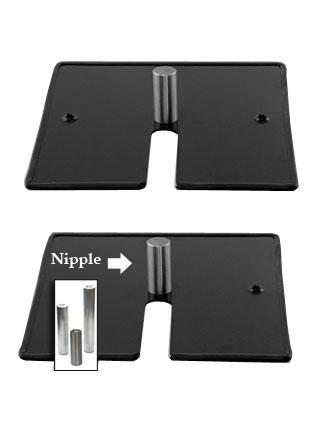

SLIP-FIT HEAVY DUTY (BLACK POWDER COATED – 2″ TUBING)

18″ x 18″ BASE, 6″ NIPPLE

35 lbs

18″ x 18″ BASE, 9″ NIPPLE

40 lbs

$105.00 Add to cart

18″ x 18″ BASE, 12″ NIPPLE

45 lbs

$109.00 Add to cart

24″ x 24″ BASE, 6″ NIPPLE

61 lbs

$165.00 Add to cart

24″ x 24″ BASE, 9″ NIPPLE

66 lbs

$165.00 Add to cart

24″ x 24″ BASE, 12″ NIPPLE

71 lbs

$169.00 Add to cart

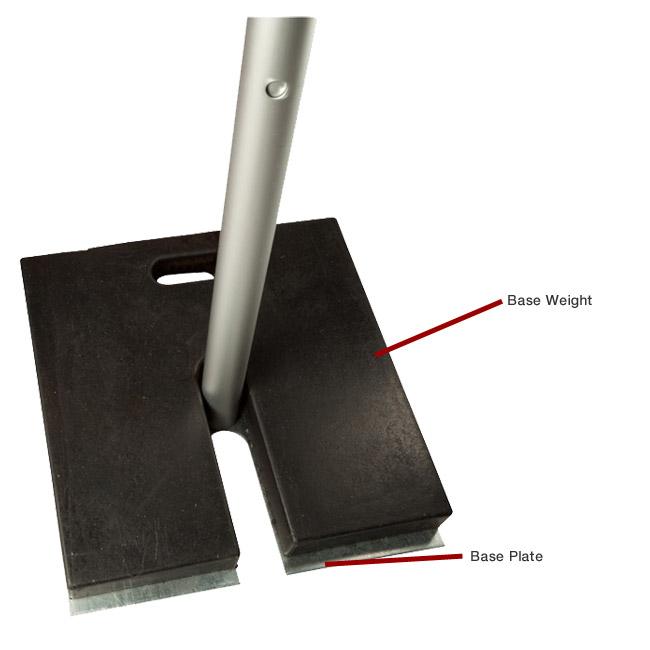

BASE WEIGHTS

Eliminates the need for sandbags and cinder blocks

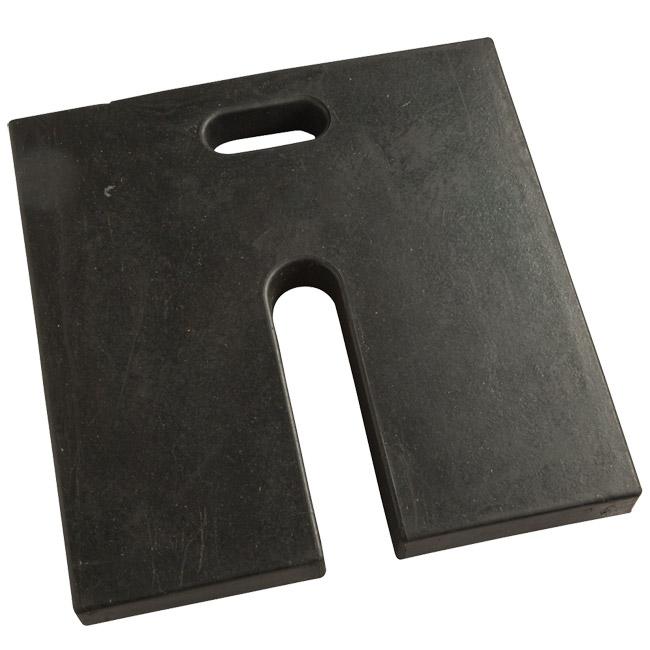

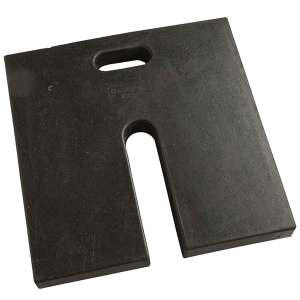

18″ x 18″ x 2″ RUBBER BASE WEIGHT

Made from 100% recycled rubber!

20 lbs

18″ x 18″ x 2″ RUBBER BASE WEIGHT

Made from 100% recycled rubber!

30 lbs

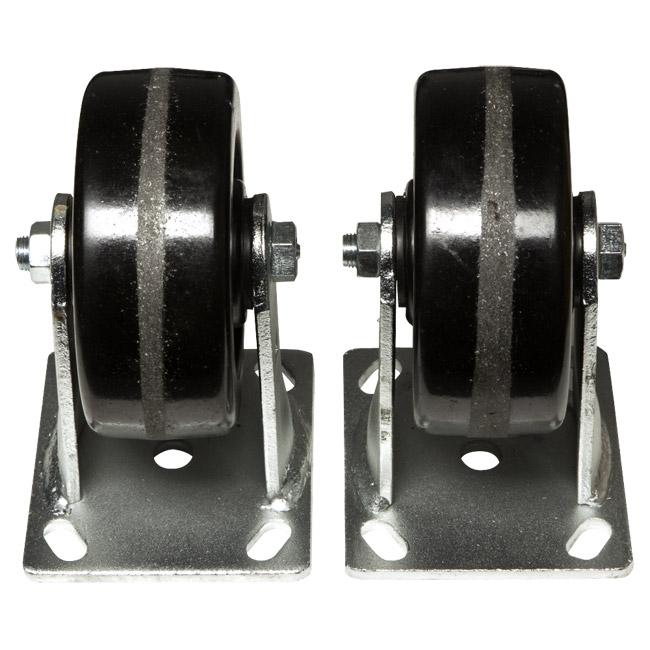

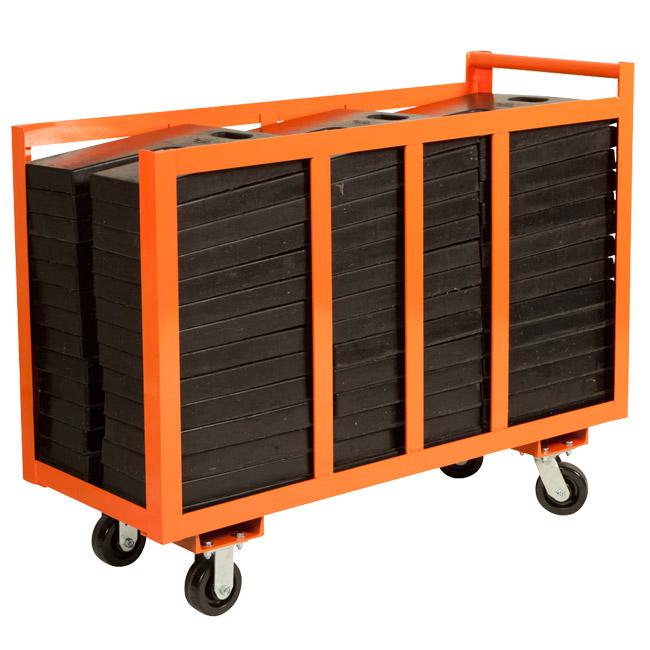

BASE WEIGHT CART

19″W x 56″L x 33″H
Each cart holds 45 base weights
All Carts Ship Standard with Silver Vein Powder Coat
$150 painting fee (3 cart minimum order)

174 lbs

$651.00 Add to cart

DRAPE SUPPORTS

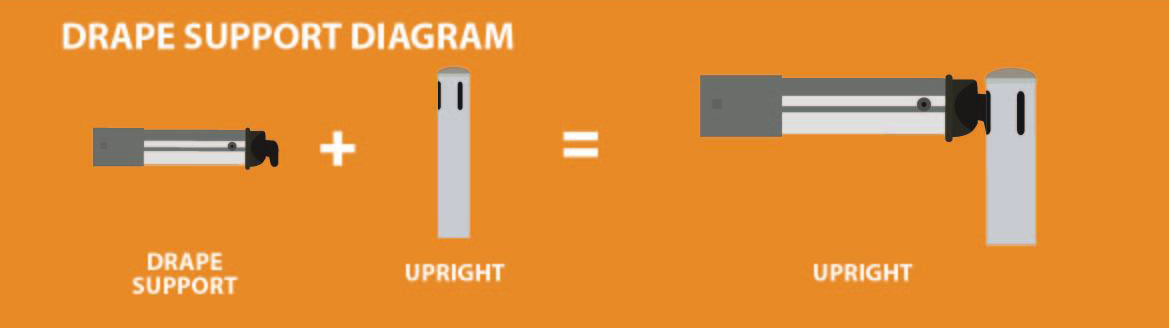

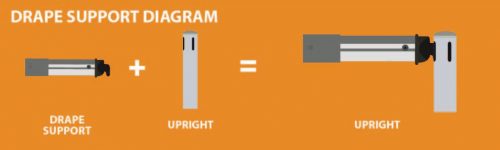

Drape supports attach to the Pipe& Drape system to support Wyndham or Banjo Cloth drape sets. Our 6-10 Drape Support is very popular. It is adjustable from a collapsed length of 6’ to 10’ when fully extended. Drape supports are compatible with any upright in any configuration. Our Drape Supports are built to last and are made from superior alloy (6063 T6) that is “aircraft quality”. Our supports also have heavier wall thickness (.072 inches) which means they won’t bend or break like the cheaper brands! Each Premier hook end is attached with four rivets by our craftsman. The Premier hook ends are made from cast aluminum meaning they wont break if accidentally dropped!

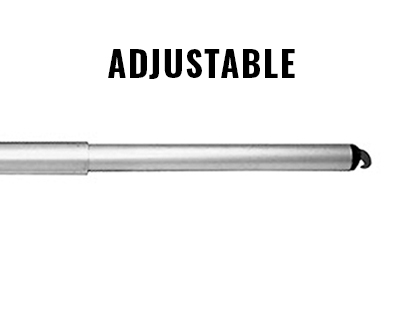

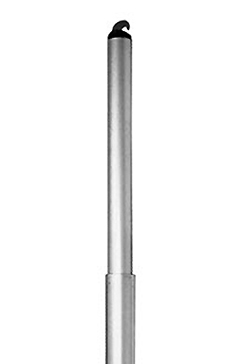

ADJUSTABLE DRAPE SUPPORTS (ALUMINUM FINISH – TO BE USED WITH 1.5″ TUBING)

3′-5′ TELESCOPING DRAPE SUPPORT

2.2 lbs

 4′-7′  ADJUSTABLE DRAPE SUPPORT

2.8 lbs

6′-10′ ADJUSTABLE DRAPE SUPPORT

4 lbs

7′-12′ ADJUSTABLE DRAPE SUPPORT

4.6 lbs

8′-14′ ADJUSTABLE DRAPE SUPPORT

5 lbs

10′-18′ ADJUSTABLE DRAPE SUPPORT

6.5 lbs

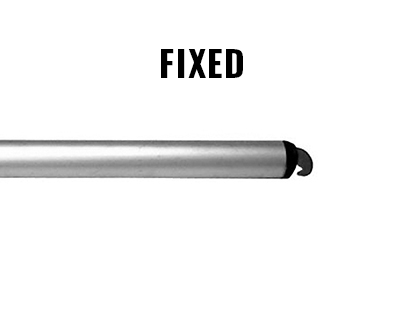

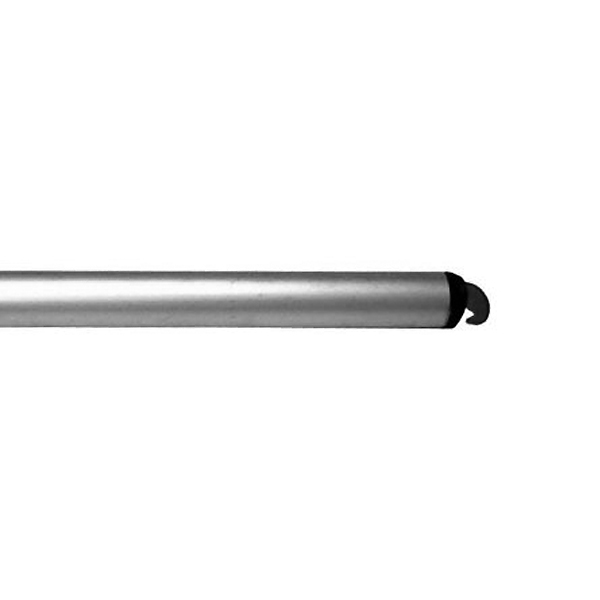

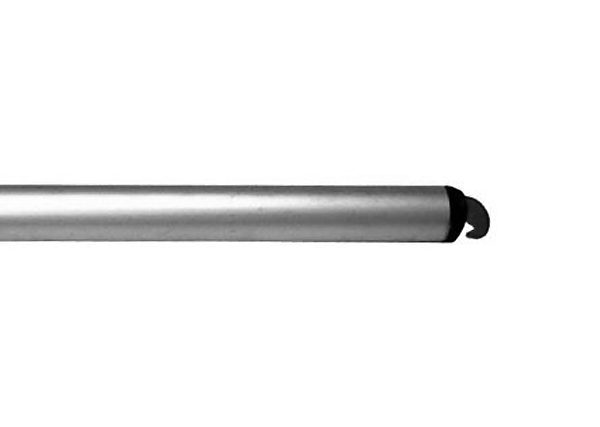

FIXED DRAPE SUPPORTS (ALUMINUM FINISH – TO BE USED WITH 1.5″ TUBING)

8′ FIXED DRAPE SUPPORT

3 lbs

10′ FIXED DRAPE SUPPORT

4 lbs
