For Layout Samples CLICK HERE
Prices shown are for aluminum finish, 1 ½” & 2″ tubing, but a black powder coat finish is also available for an upcharge.
Pipe & Drape Hardware
UPRIGHTS

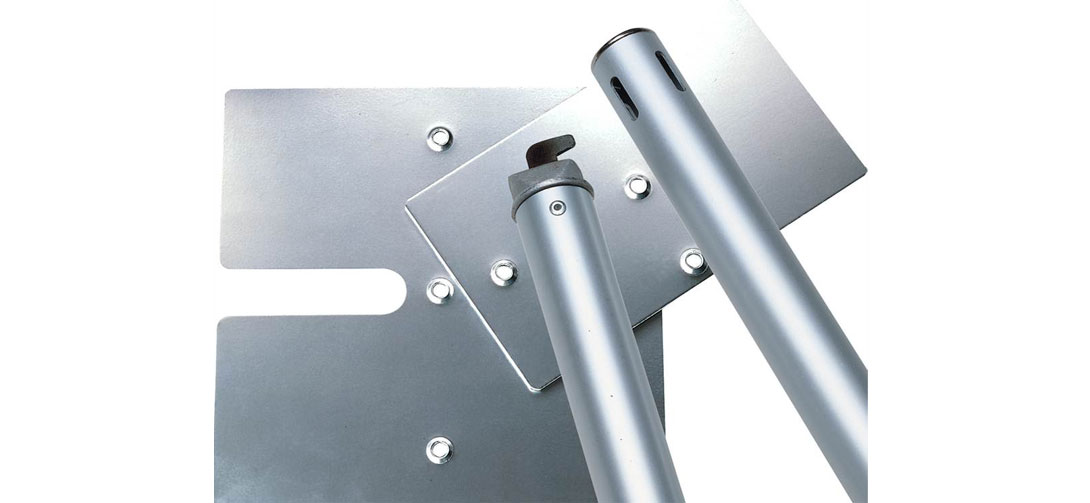

Uprights are the vertical portion of the pipe and drape framework. Some of the most commonly sold uprights are 8’ and 3’ fixed height 1.5” diameter aluminum tubes with slots at 8’ (8’ only) and 3’ (both 8’ and 3’ uprights) for drape support slots. Uprights come in both Slip Fit and Screw In. The only difference is the addition of a threaded pipe riveted to the inside of the bottom of the Screw In upright.
Uprights do not include base plates shown
FIXED UPRIGHTS
SLIP-FIT UPRIGHTS (ALUMINUM FINISH – 1.5″ TUBING)
Uprights do not include base plates shown
SCREW-IN UPRIGHTS (ALUMINUM FINISH – 1.5″ TUBING)
Uprights do not include base plates shown
EXTENSIONS (ALUMINUM FINISH – 1.5″ TUBING)
Special Height Cuts: $15 per Upright
Great for making custom height uprights. All dimensions are approximate.
Bases may add to overall height. Slots are additional.
Add 4 Additional Slots: $10 per Upright
1 Area: Front, Back, 2 Sides.
Perfect for adding a second drape support for use as a banner stand
or when custom heights are ordered (height cuts) .
EXTENSIONS (ALUMINUM FINISH – 2″ TUBING)
Special Height Cuts: $15 per Upright
Great for making custom height uprights. All dimensions are approximate.
Bases may add to overall height. Slots are additional.
Add 4 Additional Slots: $10 per Upright
1 Area: Front, Back, 2 Sides.
Perfect for adding a second drape support for use as a banner stand
or when custom heights are ordered (height cuts) .
ADJUSTABLE UPRIGHTS
SLIP-FIT UPRIGHTS (ALUMINUM FINISH – 2″ TUBING)
Uprights do not include base plates shown
SLIP FIT TELE-UPRIGHTS WITH LOCKING CLAMP & BUTTON (LCB) (ALUMINUM FINISH) (1.5″ TUBING)
Uprights do not include base plates shown
SLIP COLLAR UPRIGHTS – 2″ TUBING
Uprights do not include base plates shown
BASE PLATES
Bases are the foundation of all Pipe and Drape systems. Unlike cheaper alternatives that use hollow pins, our bases feature a machined solid steel pin for greater stability. Each pin edge is chamfered (or tapered) to make it easier to guide/install the upright over the pin. All of our 18 and 24-inch bases come standard with corner holes, and each features a carrying handle also as a standard feature.
CROSS BASE WITH PIN
SLIP-FIT (ALUMINUM FINISH – 1.5″ TUBING)
SLIP-FIT (ALUMINUM FINISH – 2″ TUBING)
8″ x 14″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 3FT.
With Edge protector installed
6 lbs
$0.00Add to cart
15″ x 15″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 10FT.
With Edge protector installed
11.2 lbs
$0.00Add to cart
24″ x 24″ SLIP FIT BASE – 6″ NIPPLE: FOR UPRIGHTS UP TO 14FT.
With Edge protector installed
17 lbs
$0.00Add to cart
16″ x 14″ SLIP FIT BASE – 3″ NIPPLE: FOR UPRIGHTS UP TO 8FT.
With Edge protector installed
10 lbs
$0.00Add to cart
18″ x 18″ SLIP FIT BASE – 6″ NIPPLE: FOR UPRIGHTS UP TO 12FT.
With Edge protector installed
17 lbs
$0.00Add to cart
SCREW IN (SILVER & BLACK – 1.5″ TUBING)
SCREW IN (BLACK POWDER COATED – 1.5″ TUBING)
SLIP-FIT (BLACK POWDER COATED – 2″ TUBING)
SLIP-FIT HEAVY DUTY (BLACK POWDER COATED – 2″ TUBING)
BASE WEIGHTS
Eliminates the need for sandbags and cinder blocks
BASE WEIGHT CART
19″W x 56″L x 33″H
Each cart holds 45 base weights
All Carts Ship Standard with Silver Vein Powder Coat
$150 painting fee (3 cart minimum order)
174 lbs
$0.00Add to cart

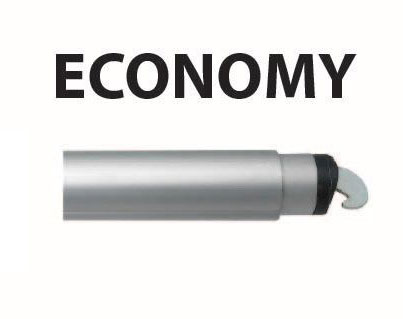

DRAPE SUPPORTS

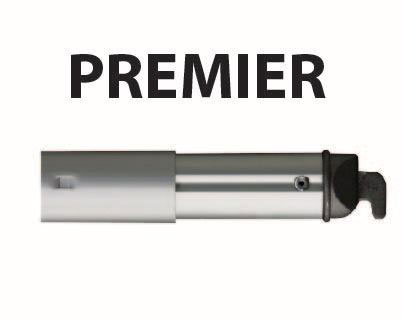

Drape supports attach to the Pipe& Drape system to support Wyndham or Banjo Cloth drape sets. Our 6-10 Drape Support is very popular. It is adjustable from a collapsed length of 6’ to 10’ when fully extended. Drape supports are compatible with any upright in any configuration. Our Drape Supports are built to last and are made from superior alloy (6063 T6) that is “aircraft quality”. Our supports also have heavier wall thickness (.072 inches) which means they won’t bend or break like the cheaper brands! Each Premier hook end is attached with four rivets by our craftsman. The Premier hook ends are made from cast aluminum meaning they wont break if accidentally dropped!
ADJUSTABLE DRAPE SUPPORTS (ALUMINUM FINISH – TO BE USED WITH 1.5″ TUBING)

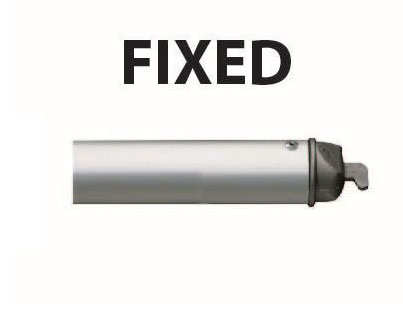

FIXED DRAPE SUPPORTS (ALUMINUM FINISH – TO BE USED WITH 1.5″ TUBING)
