Pipe and Drape Layout Samples
10′ x10′ PIPE AND DRAPE BOOTHS

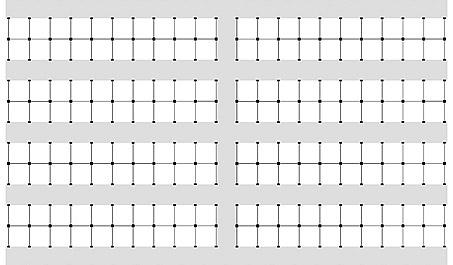

160Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
    8 Sets of 20 Back-to-Back 10’x10’ Booths
100’ wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
- 88  Base Plates 15”x15” for 8’ Uprights, slip fit
- 88Â Â 8′ Upright, Slip-Fit
- 176 Base Plates 8”x14” for 3’ Uprights, slip fit
- 176 3′ Upright, Slip-Fit
- 256 6′-10′ Adjustable Drape Support
- 240 Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
- 528 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
200 Pipe & Drape Booths, Feb 2009
For Prices: Please call for a Quote – 1-877-268-7469
160Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
    8 Sets of 20 Back-to-Back 10’x10’ Booths
100’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
88  Base Plates 15”x15” for 8’ Uprights, slip fit
88Â Â 8′ Upright, Slip-Fit
176 Base Plates 8”x14” for 3’ Uprights, slip fit
176 3′ Upright, Slip-Fit
256 6′-10′ Adjustable Drape Support
240 Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
528 Wyndham Rod Pocket Side Rail Drapes  (60″ wide x 35″ high for 36″ high side rail)
40 Pipe & Drape Booths (Side by Side) with Side Rails
2 Sets of 20 Side-by-Side 10’x10’ Booths
200’wide x 10’ deep x 8’ high
42  Base Plates 15”x15” for 8’ Uprights, slip fit
42Â Â 8′ Upright, Slip-Fit
42  Base Plates 8”x14” for 3’ Uprights, slip fit
42Â Â 3′ Upright, Slip-Fit
82Â Â 6′-10′ Adjustable Drape Support
120 Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
126 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)

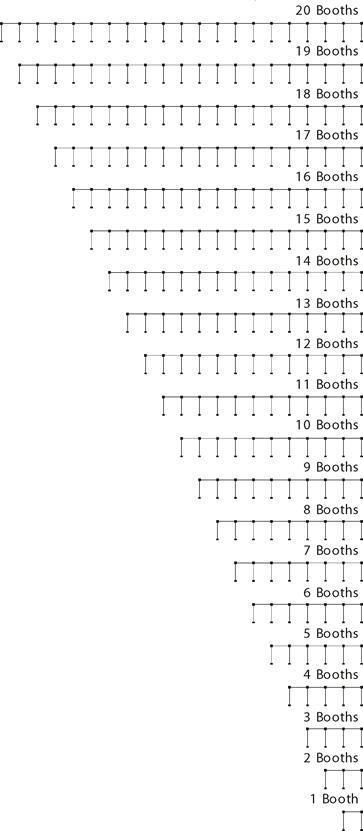

PIPE AND DRAPE BOOTHS (SIDE BY SIDE WITH SIDE RAILS)
1Â Pipe & Drape Booth with Side Rails
10’wide x 10’ deep x 8’ high
- 2 Base Plates 15”x15” for 8’ Uprights, slip fit
- 2 8′ Upright, Slip-Fit
- 2 Base Plates 8”x14” for 3’ Uprights, slip fit
- 2 3′ Upright, Slip-Fit
- 3 6′-10′ Adjustable Drape Support
- 3 Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
- 6 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
Pipe & Drape Booths (Side by Side with side rails) Feb, 2009
For Prices: Please call for a Quote – 1-877-268-7469
1Â Pipe & Drape Booth with Side Rails Â
10’wide x 10’ deep x 8’ high
2     Base Plates 15”x15” for 8’ Uprights, slip fit
3     8’ Upright, Slip-Fit
2    Base Plates 8”x14” for 3’ Uprights, slip fit
2    3’ Upright, Slip-Fit
3    6’-10’ Adjustable Drape Support
3    Wyndham Rod Pocket Backdrops (60” wide x 95” high for 8’ high back wall)
6Â Â Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
2Â Pipe & Drape Booths (Side by Side) with Side Rails
20’wide x 10’ deep x 8’ high
3    Base Plates 15”x15” for 8’ Uprights, slip fit
3Â Â Â Â 8′ Upright, Slip-Fit
3    Base Plates 8”x14” for 3’ Uprights, slip fit
3Â Â Â Â 3′ Upright, Slip-Fit
5Â Â Â Â 6′-10′ Adjustable Drape Support
6Â Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
9Â Â Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
3Â Pipe & Drape Booths (Side by Side) with Side Rails
30’wide x 10’ deep x 8’ high
4    Base Plates 15”x15” for 8’ Uprights, slip fit
4Â Â Â Â 8′ Upright, Slip-Fit
4    Base Plates 8”x14” for 3’ Uprights, slip fit
4Â Â Â Â 3′ Upright, Slip-Fit
7Â Â Â Â 6′-10′ Adjustable Drape Support
9Â Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
12Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
4Â Pipe & Drape Booths (Side by Side) with Side Rails
40’wide x 10’ deep x 8’ high
5    Base Plates 15”x15” for 8’ Uprights, slip fit
5Â Â Â Â 8′ Upright, Slip-Fit
5    Base Plates 8”x14” for 3’ Uprights, slip fit
5Â Â Â Â 3′ Upright, Slip-Fit
9Â Â Â Â 6′-10′ Adjustable Drape Support
12Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
15Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
5Â Pipe & Drape Booths (Side by Side) with Side Rails
50’wide x 10’ deep x 8’ high
6    Base Plates 15”x15” for 8’ Uprights, slip fit
6Â Â Â Â 8′ Upright, Slip-Fit
6    Base Plates 8”x14” for 3’ Uprights, slip fit
6Â Â Â Â 3′ Upright, Slip-Fit
11Â Â 6′-10′ Adjustable Drape Support
15Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
18Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
6Â Pipe & Drape Booths (Side by Side) with Side Rails
60’wide x 10’ deep x 8’ high
7    Base Plates 15”x15” for 8’ Uprights, slip fit
7Â Â Â Â 8′ Upright, Slip-Fit
7    Base Plates 8”x14” for 3’ Uprights, slip fit
7Â Â Â Â 3′ Upright, Slip-Fit
13Â Â 6′-10′ Adjustable Drape Support
18Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
21Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
7Â Pipe & Drape Booths (Side by Side) with Side Rails
70’wide x 10’ deep x 8’ high
8    Base Plates 15”x15” for 8’ Uprights, slip fit
8Â Â Â Â 8′ Upright, Slip-Fit
8    Base Plates 8”x14” for 3’ Uprights, slip fit
8Â Â Â Â 3′ Upright, Slip-Fit
15Â Â 6′-10′ Adjustable Drape Support
21Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
24Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
8Â Pipe & Drape Booths (Side by Side) with Side Rails
80’wide x 10’ deep x 8’ high
9    Base Plates 15”x15” for 8’ Uprights, slip fit
9Â Â Â Â 8′ Upright, Slip-Fit
9    Base Plates 8”x14” for 3’ Uprights, slip fit
9Â Â Â Â 3′ Upright, Slip-Fit
17Â Â 6′-10′ Adjustable Drape Support
24Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
27Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
9Â Pipe & Drape Booths (Side by Side) with Side Rails
90’wide x 10’ deep x 8’ high
10  Base Plates 15”x15” for 8’ Uprights, slip fit
10Â Â 8′ Upright, Slip-Fit
10  Base Plates 8”x14” for 3’ Uprights, slip fit
10Â Â 3′ Upright, Slip-Fit
19Â Â 6′-10′ Adjustable Drape Support
27Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
30  Wyndham Rod Pocket Side Rail Drapes  (60″ wide x 35″ high for 36″ high side rail)
10Â Pipe & Drape Booths (Side by Side) with Side Rails
100’wide x 10’ deep x 8’ high
11  Base Plates 15”x15” for 8’ Uprights, slip fit
11Â Â 8′ Upright, Slip-Fit
11  Base Plates 8”x14” for 3’ Uprights, slip fit
11Â Â 3′ Upright, Slip-Fit
21Â Â 6′-10′ Adjustable Drape Support
30Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
33Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
11Â Pipe & Drape Booths (Side by Side) with Side Rails
110’wide x 10’ deep x 8’ high
12  Base Plates 15”x15” for 8’ Uprights, slip fit
12Â Â 8′ Upright, Slip-Fit
12  Base Plates 8”x14” for 3’ Uprights, slip fit
12Â Â 3′ Upright, Slip-Fit
23Â Â 6′-10′ Adjustable Drape Support
33Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
36Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
12Â Pipe & Drape Booths (Side by Side) with Side Rails
120’wide x 10’ deep x 8’ high
13  Base Plates 15”x15” for 8’ Uprights, slip fit
13Â Â 8′ Upright, Slip-Fit
13  Base Plates 8”x14” for 3’ Uprights, slip fit
13Â Â 3′ Upright, Slip-Fit
25Â Â 6′-10′ Adjustable Drape Support
36Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
39Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
13Â Pipe & Drape Booths (Side by Side) with Side Rails
130’wide x 10’ deep x 8’ high
14  Base Plates 15”x15” for 8’ Uprights, slip fit
14Â Â 8′ Upright, Slip-Fit
14  Base Plates 8”x14” for 3’ Uprights, slip fit
14Â Â 3′ Upright, Slip-Fit
27Â Â 6′-10′ Adjustable Drape Support
39Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
42Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
14Â Pipe & Drape Booths (Side by Side) with Side Rails
140’wide x 10’ deep x 8’ high
15  Base Plates 15”x15” for 8’ Uprights, slip fit
15Â Â 8′ Upright, Slip-Fit
15  Base Plates 8”x14” for 3’ Uprights, slip fit
15Â Â 3′ Upright, Slip-Fit
29Â Â 6′-10′ Adjustable Drape Support
42Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
45Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
15Â Pipe & Drape Booths (Side by Side) with Side Rails
150’wide x 10’ deep x 8’ high
16  Base Plates 15”x15” for 8’ Uprights, slip fit
16Â Â 8′ Upright, Slip-Fit
16  Base Plates 8”x14” for 3’ Uprights, slip fit
16Â Â 3′ Upright, Slip-Fit
31Â Â 6′-10′ Adjustable Drape Support
45Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
48Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
16Â Pipe & Drape Booths (Side by Side) with Side Rails
160’wide x 10’ deep x 8’ high
17  Base Plates 15”x15” for 8’ Uprights, slip fit
17Â Â 8′ Upright, Slip-Fit
17  Base Plates 8”x14” for 3’ Uprights, slip fit
17Â Â 3′ Upright, Slip-Fit
33Â Â 6′-10′ Adjustable Drape Support
48Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
51Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
17Â Pipe & Drape Booths (Side by Side) with Side Rails
170’wide x 10’ deep x 8’ high
18  Base Plates 15”x15” for 8’ Uprights, slip fit
18Â Â 8′ Upright, Slip-Fit
18  Base Plates 8”x14” for 3’ Uprights, slip fit
18Â Â 3′ Upright, Slip-Fit
35Â Â 6′-10′ Adjustable Drape Support
51Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
54Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
18Â Pipe & Drape Booths (Side by Side) with Side Rails
180’wide x 10’ deep x 8’ high
19  Base Plates 15”x15” for 8’ Uprights, slip fit
19Â Â 8′ Upright, Slip-Fit
19  Base Plates 8”x14” for 3’ Uprights, slip fit
19Â Â 3′ Upright, Slip-Fit
37Â Â 6′-10′ Adjustable Drape Support
54Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
57Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
19Â Pipe & Drape Booths (Side by Side) with Side Rails
190’wide x 10’ deep x 8’ high
20  Base Plates 15”x15” for 8’ Uprights, slip fit
20Â Â 8′ Upright, Slip-Fit
20  Base Plates 8”x14” for 3’ Uprights, slip fit
20Â Â 3′ Upright, Slip-Fit
39Â Â 6′-10′ Adjustable Drape Support
57Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
60Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
20Â Pipe & Drape Booths (Side by Side) with Side Rails
200’wide x 10’ deep x 8’ high
21  Base Plates 15”x15” for 8’ Uprights, slip fit
21Â Â 8′ Upright, Slip-Fit
21  Base Plates 8”x14” for 3’ Uprights, slip fit
21Â Â 3′ Upright, Slip-Fit
41Â Â 6′-10′ Adjustable Drape Support
60Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
63Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)

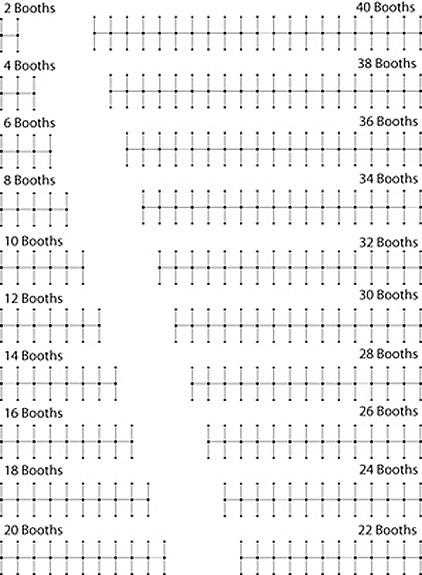

PIPE AND DRAPE BOOTHS (BACK TO BACK)
2Â Back-to-Back Pipe & Drape Booths with Side Rails
10’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
-     2    Base Plates 15”x15” for 8’ Uprights, slip fit
- Â Â Â Â 2Â Â Â Â 8′ Upright, Slip-Fit
-     4    Base Plates 8”x14” for 3’ Uprights, slip fit
- Â Â Â Â 4Â Â Â Â 3′ Upright, Slip-Fit
- Â Â Â Â 5Â Â Â Â 6′-10′ Adjustable Drape Support
- Â Â Â Â 3Â Â Â Â Wyndham Rod Pocket Backdrops ( 60″ wide x 95″ high for 8′ high back wall)
- Â Â Â Â 12Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
Pipe & Drape Booths (Side by Side with side rails) Feb, 2009
For Prices: Please call for a Quote – 1-877-268-7469
2Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
10’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
2    Base Plates 15”x15” for 8’ Uprights, slip fit
2Â Â Â Â 8′ Upright, Slip-Fit
4    Base Plates 8”x14” for 3’ Uprights, slip fit
4Â Â Â Â 3′ Upright, Slip-Fit
5Â Â Â Â 6′-10′ Adjustable Drape Support
3Â Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
12Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
4Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
20’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
3    Base Plates 15”x15” for 8’ Uprights, slip fit
3Â Â Â Â 8′ Upright, Slip-Fit
6    Base Plates 8”x14” for 3’ Uprights, slip fit
6Â Â Â Â 3′ Upright, Slip-Fit
8Â Â Â Â 6′-10′ Adjustable Drape Support
6Â Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
18Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
6Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
30’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
4    Base Plates 15”x15” for 8’ Uprights, slip fit
4Â Â Â Â 8′ Upright, Slip-Fit
8    Base Plates 8”x14” for 3’ Uprights, slip fit
8Â Â Â Â 3′ Upright, Slip-Fit
11Â Â 6′-10′ Adjustable Drape Support
9Â Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
24Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
8Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
40’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
5    Base Plates 15”x15” for 8’ Uprights, slip fit
5Â Â Â Â 8′ Upright, Slip-Fit
10   Base Plates 8”x14” for 3’ Uprights, slip fit
10Â Â Â 3′ Upright, Slip-Fit
14Â Â Â 6′-10′ Adjustable Drape Support
12Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
30Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
10Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
50’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
6    Base Plates 15”x 15” for 8’ Uprights, slip fit
6Â Â Â Â 8′ Upright, Slip-Fit
12  Base Plates 8”x14” for 3’ Uprights, slip fit
12Â Â 3′ Upright, Slip-Fit
17Â Â 6′-10′ Adjustable Drape Support
15Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
36Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
12Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
60’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
7    Base Plates 15”x15” for 8’ Uprights, slip fit
7Â Â Â Â 8′ Upright, Slip-Fit
14  Base Plates 8”x14” for 3’ Uprights, slip fit
14Â Â 3′ Upright, Slip-Fit
20Â Â 6′-10′ Adjustable Drape Support
18Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
42Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
14Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
70’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
8    Base Plates 15”x15” for 8’ Uprights, slip fit
8Â Â Â Â 8′ Upright, Slip-Fit
16  Base Plates 8”x14” for 3’ Uprights, slip fit
16Â Â 3′ Upright, Slip-Fit
23Â Â 6′-10′ Adjustable Drape Support
21Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
48Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
16Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
80’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
9     Base Plates 15”x15” for 8’ Uprights, slip fit
9Â Â Â Â Â 8′ Upright, Slip-Fit
18    Base Plates 8”x14” for 3’ Uprights, slip fit
18Â Â Â Â 3′ Upright, Slip-Fit
26Â Â Â 6′-10′ Adjustable Drape Support
24Â Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
54Â Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
18Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
90’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
10   Base Plates 15”x15” for 8’ Uprights, slip fit
10Â Â 8′ Upright, Slip-Fit
20  Base Plates 8”x14” for 3’ Uprights, slip fit
20Â Â 3′ Upright, Slip-Fit
29Â Â 6′-10′ Adjustable Drape Support
27Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
60Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
20Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
100’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
11  Base Plates 15”x15” for 8’ Uprights, slip fit
11Â Â 8′ Upright, Slip-Fit
22  Base Plates 8”x14” for 3’ Uprights, slip fit
22Â Â 3′ Upright, Slip-Fit
32Â Â 6′-10′ Adjustable Drape Support
30  Wyndham Rod Pocket Backdrops  (60″ wide x 95″ high for 8′ high back wall)
66Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
22Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
110’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
12  Base Plates 15”x15” for 8’ Uprights, slip fit
12Â Â 8′ Upright, Slip-Fit
24  Base Plates 8”x14” for 3’ Uprights, slip fit
24Â Â 3′ Upright, Slip-Fit
35Â Â 6′-10′ Adjustable Drape Support
33Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
72Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
24Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
120’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
13  Base Plates 15”x15” for 8’ Uprights, slip fit
13Â Â 8′ Upright, Slip-Fit
26  Base Plates 8”x14” for 3’ Uprights, slip fit
26Â Â 3′ Upright, Slip-Fit
38Â Â 6′-10′ Adjustable Drape Support
36Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
78Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
26Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
130’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
14  Base Plates 15”x15” for 8’ Uprights, slip fit
14Â Â 8′ Upright, Slip-Fit
28  Base Plates 8”x14” for 3’ Uprights, slip fit
28Â Â 3′ Upright, Slip-Fit
41Â Â 6′-10′ Adjustable Drape Support
39Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
84Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
28Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
140’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
15  Base Plates 15”x15” for 8’ Uprights, slip fit
15Â Â 8′ Upright, Slip-Fit
30  Base Plates 8”x14” for 3’ Uprights, slip fit
30Â Â 3′ Upright, Slip-Fit
44Â Â 6′-10′ Adjustable Drape Support
42Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
90Â Â Wyndham Rod Pocket Side Rail Drapes
(60″ wide x 35″ high for 36″ high side rail)
30Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
150’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
16  Base Plates 15”x15” for 8’ Uprights, slip fit
16Â Â 8′ Upright, Slip-Fit
32  Base Plates 8”x14” for 3’ Uprights, slip fit
32Â Â 3′ Upright, Slip-Fit
47Â Â 6′-10′ Adjustable Drape Support
45Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
96Â Â Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
32Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
160’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
17  Base Plates 15”x15” for 8’ Uprights, slip fit
17Â Â 8′ Upright, Slip-Fit
34  Base Plates 8”x14” for 3’ Uprights, slip fit
34Â Â 3′ Upright, Slip-Fit
50Â Â 6′-10′ Adjustable Drape Support
48Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
102 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
34Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
170’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
18  Base Plates 15”x15” for 8’ Uprights, slip fit
18Â Â 8′ Upright, Slip-Fit
36  Base Plates 8”x14” for 3’ Uprights, slip fit
36Â Â 3′ Upright, Slip-Fit
53Â Â 6′-10′ Adjustable Drape Support
51Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
108 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
36Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
180’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
19  Base Plates 15”x15” for 8’ Uprights, slip fit
19Â Â 8′ Upright, Slip-Fit
38  Base Plates 8”x14” for 3’ Uprights, slip fit
38Â Â Â 3′ Upright, Slip-Fit
56Â Â 6′-10′ Adjustable Drape Support
54Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
114 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
38Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
190’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
20  Base Plates 15”x15” for 8’ Uprights, slip fit
20Â Â 8′ Upright, Slip-Fit
40  Base Plates 8”x14” for 3’ Uprights, slip fit
40Â Â 3′ Upright, Slip-Fit
59Â Â 6′-10′ Adjustable Drape Support
57Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
120 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)
40Â Back-to-Back Pipe & Drape Booths with Side RailsÂ
200’wide x 20’ deep x 8’ high (2 ROWS of 10’x10’ Booths)
21  Base Plates 15”x15” for 8’ Uprights, slip fit
21Â Â 8′ Upright, Slip-Fit
42  Base Plates 8”x14” for 3’ Uprights, slip fit
42Â Â 3′ Upright, Slip-Fit
62Â Â 6′-10′ Adjustable Drape Support
60Â Â Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
126 Wyndham Rod Pocket Side Rail Drapes (60″ wide x 35″ high for 36″ high side rail)

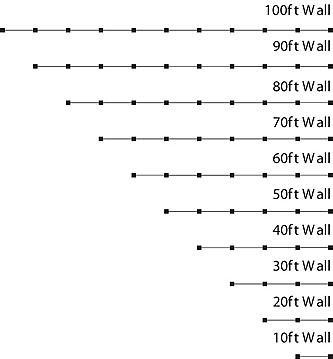

PIPE AND DRAPE WALLS

Pipe & Drape Wall 10’wide x 8’ high
- 2 Base Plates 15”x15”
- 2 8′ Upright, Slip-Fit
- 1 6′-10′ Adjustable Drape Support:
- 3 Wyndham Rod Pocket Backdrops (60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape WALLS (no side rails)
For Prices: Please call for a Quote – 1-877-268-7469
Pipe & Drape Wall 10’wide x 8’ high
2    Base Plates 15”x15”
2Â Â Â Â 8′ Upright, Slip-Fit
1Â Â Â Â 6′-10′ Adjustable Drape Support
3Â Â Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 20’wide x 8’ high
3    Base Plates 15”x15”
3Â Â Â Â 8′ Upright, Slip-Fit
2Â Â Â Â 6′-10′ Adjustable Drape Support
6Â Â Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 30’wide x 8’ high
4    Base Plates 15”x15”
4Â Â Â Â 8′ Upright, Slip-Fit
3Â Â Â Â 6′-10′ Adjustable Drape Support
9Â Â Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 40’wide x 8’ high
5    Base Plates 15”x15”
5Â Â Â Â 8′ Upright, Slip-Fit
4Â Â Â Â 6′-10′ Adjustable Drape Support
12Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 50’wide x 8’ high
6    Base Plates 15”x15”
6Â Â Â Â 8′ Upright, Slip-Fit
5Â Â Â Â 6′-10′ Adjustable Drape Support
15Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 60’wide x 8’ high
7    Base Plates 15”x15”
7Â Â Â Â 8′ Upright, Slip-Fit
6Â Â Â Â 6′-10′ Adjustable Drape Support
18Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 70’wide x 8’ high
8    Base Plates 15”x15”
8Â Â Â Â 8′ Upright, Slip-Fit
7Â Â Â Â 6′-10′ Adjustable Drape Support
21Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 80’wide x 8’ high
9    Base Plates 15”x15”
9Â Â Â Â 8′ Upright, Slip-Fit
8Â Â Â Â 6′-10′ Adjustable Drape Support
24Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 90’wide x 8’ high
10  Base Plates 15”x15”
10Â Â 8′ Upright, Slip-Fit
9Â Â Â Â 6′-10′ Adjustable Drape Support
27Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
Pipe & Drape Wall 100’wide x 8’ high
11  Base Plates 15”x15”
11Â Â 8′ Upright, Slip-Fit
10Â Â 6′-10′ Adjustable Drape Support
30Â Â Wyndham Rod Pocket Backdrops
(60″ wide x 95″ high for 8′ high back wall)
